MIL-DTL-55302/164D
NOTES:
1. For plugs only. The p.c. board may be extended to 11.50 max from center of mounting holes.
2. Tolerance are noncumulative.
3. Dimensions are in millimeters.

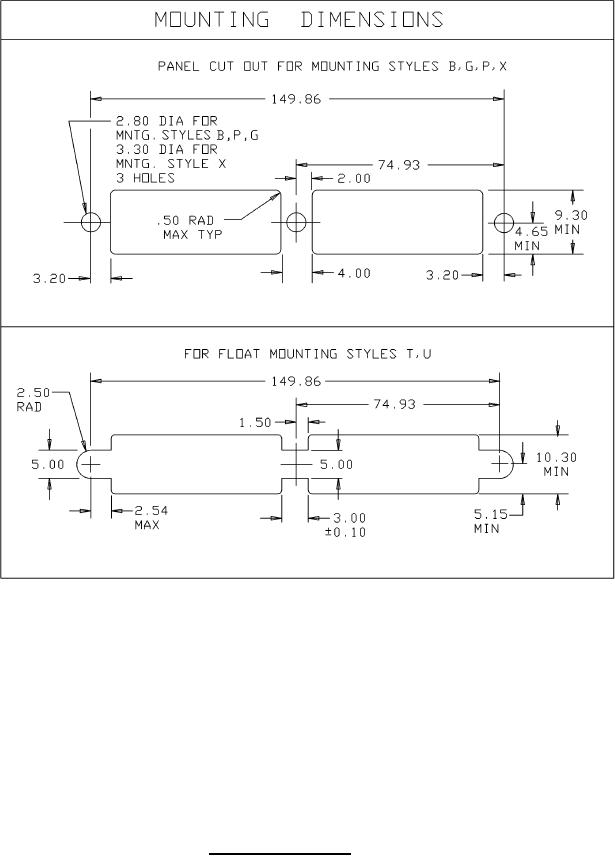

FIGURE 6. Mounting dimensions - Continued.
12
