INCH-POUND
MIL-DTL-55302/167B
13 May 2005
SUPERSEDING
MIL-C-55302/167A(USAF)
10 June 1986
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
LOW MATING FORCE, MALE BRUSH, STRAIGHT-THROUGH, POLARIZED,
WITH WRAPPOST TERMINATION (.100 SPACING)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-55302.

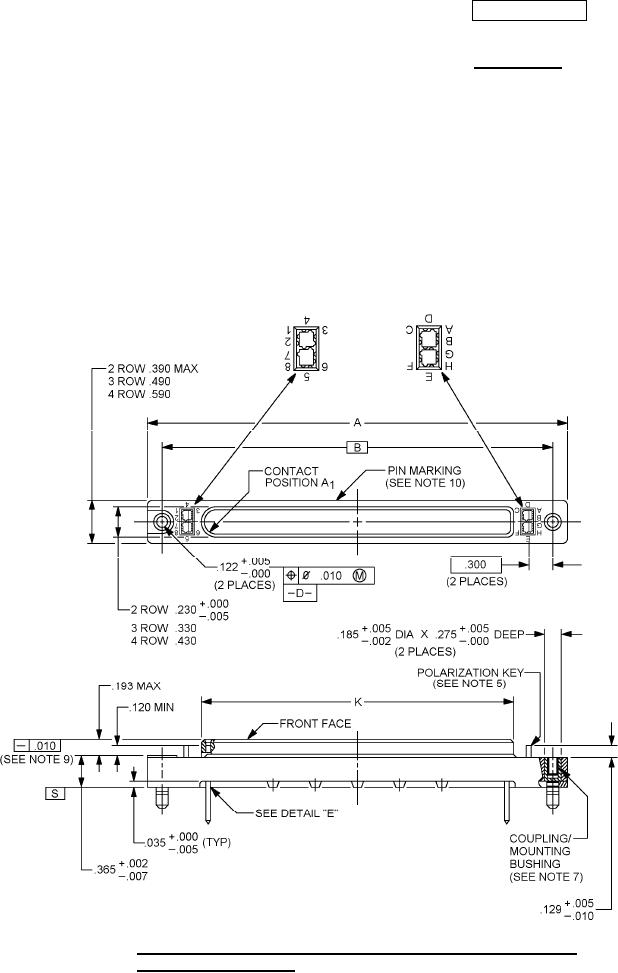

FIGURE 1. Connector, male brush, straight-through with wrappost termination
.100 (2.54 mm) spacing.
AMSC N/A
FSC 5935
