MIL-DTL-55302/167B
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.002
0.05
.035
0.89
.193
4.90
.365
9.27
.005
0.13
.112
2.84
.200
5.08
.390
9.91
.007
0.18
.120
3.04
.230
5.84
.430
10.92
.010
0.25
.122
3.10
.275
6.98
.490
12.45
.020
0.51
.129
3.28
.300
7.62
.590
14.99
.025
0.64
.185
4.70
.330
8.38
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerance is ± .010 (0.25 mm).
4. These connectors mate with connectors specified in MIL-DTL-55302/169 and MIL-DTL-55302/170
and are primarily for use with single-sided, double-sided, or multilayered printed wiring boards.
5. The polarization feature, utilizing four M55302/78-02 polarizing keys which are not supplied with
the connector, will provide 256 unique polarizing positions.
6. For dimensions A through K, see table I.
7. Coupling/mounting bushings are not supplied with the connector. See M55302/172-01 and 02.
8. Contact rows are identified by molded letters on the front and rear face. Numbers indicating every
fifth contact per row appear on rear face, except for arrangements consisting of 10 contacts per
row which lack numerals. Up to 9 contact locations at the high numeral end of the contact row will
not be identified.
9. Perfect form at MMC not required. Dimension for user installation purposes only.
10. Part or Identifying Number (PIN).

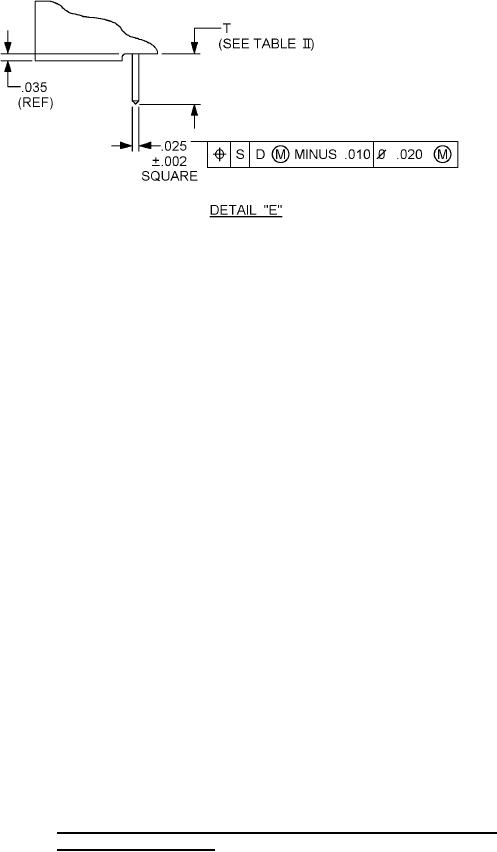

FIGURE 1. Connector, male brush, straight-through with wrappost termination
.100 (2.54 mm) spacing Continued.
