MIL-DTL-55302-180 Connectors, Printed Circuit Subassembly And Accessories: 4 Row, Receptacle Assemblies, Right Angle, 100 Through 684 Contact Positions, For Printed Wiring Boards \(.100 Spacing\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

INCH-POUND

MIL-DTL-55302/180C

23 January 2008

SUPERSEDING

MIL- DTL-55302/180B

13 September 2002

DETAIL SPECIFICATION SHEET

CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:

4 ROW, RECEPTACLE ASSEMBLIES, RIGHT ANGLE, 100 THROUGH 684 CONTACT POSITIONS,

FOR PRINTED WIRING BOARDS (.100 SPACING)

This specification is approved for use by all Departments

and Agencies of the Department of Defense.

The requirements for acquiring the product described herein shall consist of this specification sheet and

MIL-DTL-55302.

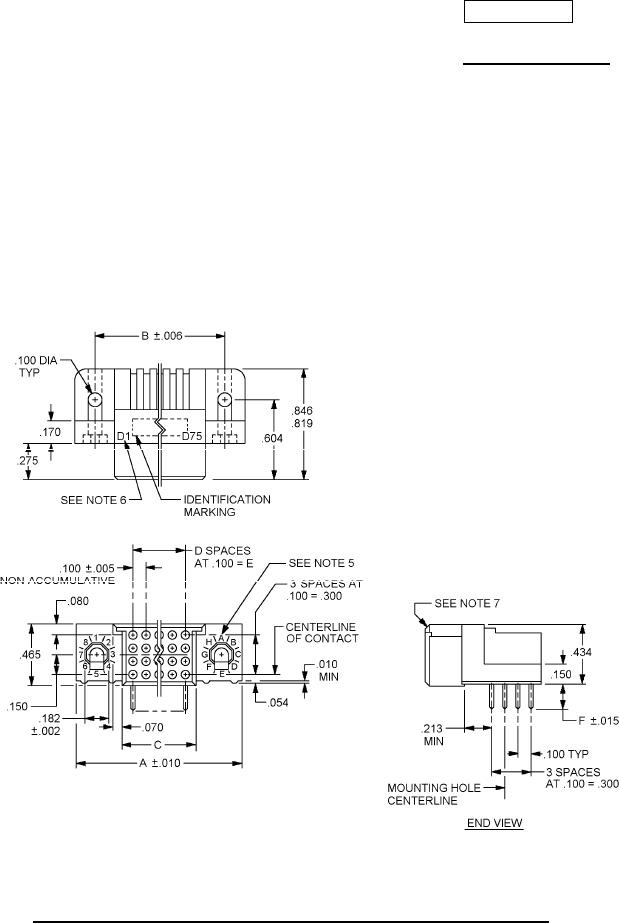

FIGURE 1. Connectors, receptacle assemblies .100 (2.54 mm) spacing) 100 through 300 contacts.

AMSC N/A

FSC 5935
