MIL-DTL-55302/182C
Mounting ear kit
Figures
Type
7, 8
M55302/182-17
XI
7, 9
M55302/182-18
XII
Inches
mm
Inches
mm
.030
0.76
.100
2.54
.050
1.27
.174
4.42
.060
1.52
.220
5.59
.075
1.90
.340
8.64
.086
2.18
.375
9.52
.090
2.29
.440
11.18
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerance is ± .005 (0.13 mm).

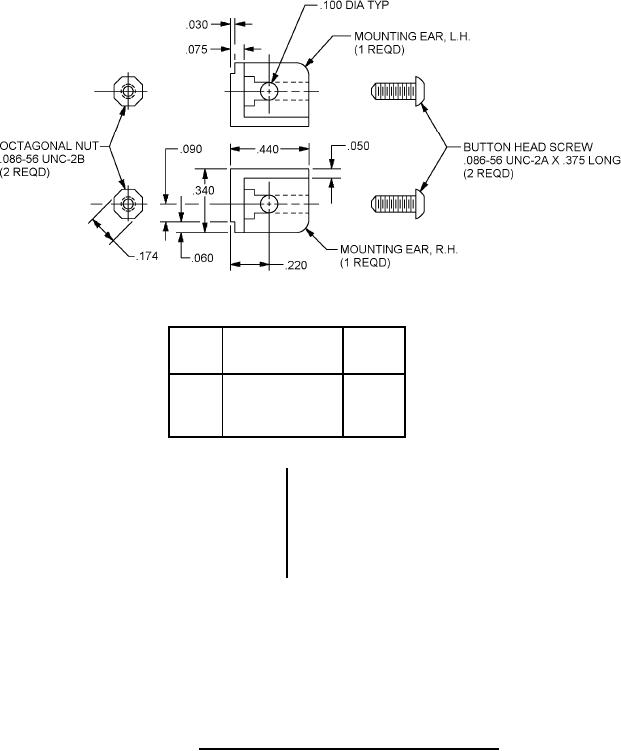

FIGURE 9. Mounting ear kit for M55302/178 and M55302/181.
