INCH-POUND
MIL-DTL-55302/29B
5 December 2003
SUPERSEDING
MIL-C-55302/29A
20 March 1972
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES: GAGE
FOR CONTACT SEPARATION FORCE TEST METHOD
This specification is approved for used by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.
Inches
mm
.250
0.64
.251
0.64
.500
12.70
MATERIAL: TOOL STEEL
FINISH: 2 to 10 MICROINCHES RMS
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. Gage to be used on MIL-DTL-55302/24, MIL-DTL-55302/25 and MIL-DTL-55302/27.

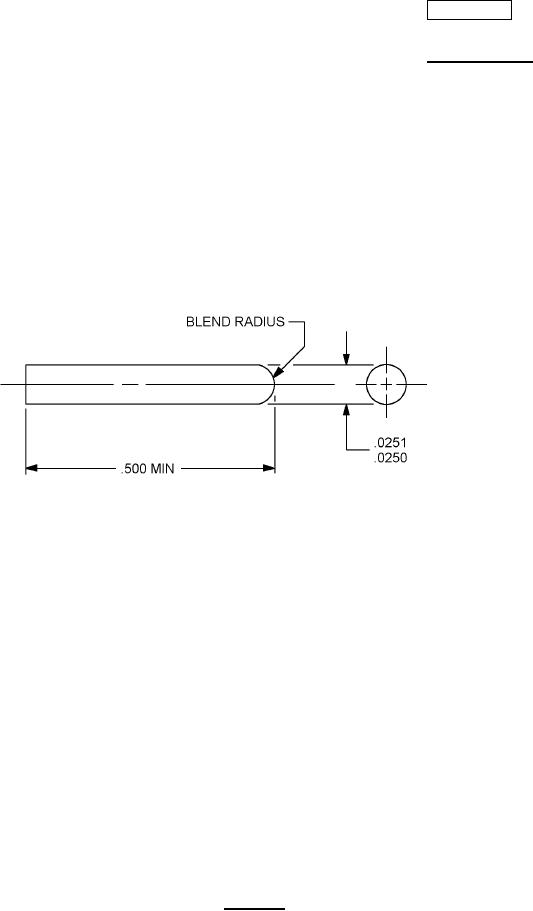

FIGURE 1. Test gage.
AMSC N/A
FSC 5935
