MIL-DTL-55302/57H
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.005 (0.13 mm).
4. These connectors mate with connectors specified in MIL-DTL-55302/62, MIL-DTL-55302/64,
MIL-DTL-55302/65, MIL-DTL-55302/66 and MIL-DTL-55302/58 using appropriate hardware.
5. Numbers indicating the first and last position in each row and every fourth contact position in between shall be
marked on the side(s) of the connector. As and option to the above, numbers indicating every fourth cavity
may be stamped on the side of the connector, with the exception that the number one contact shall be
marked.
6. Termination layout on .020 (0.51 mm) modular grid.
7. Metric equivalents are in parentheses.
8. Handle shape optional.
9. Optional undercut .050 (1.27 mm) maximum, on PCB side for cleaning purposes.
10. Position of the hex orientation is optional. Hex shall not break through the side of the insulator.
11. Hole depth to female guide hardware is .282 min (7.16 mm). Full thread depth to female threaded hardware
is .240 min (6.1 mm).

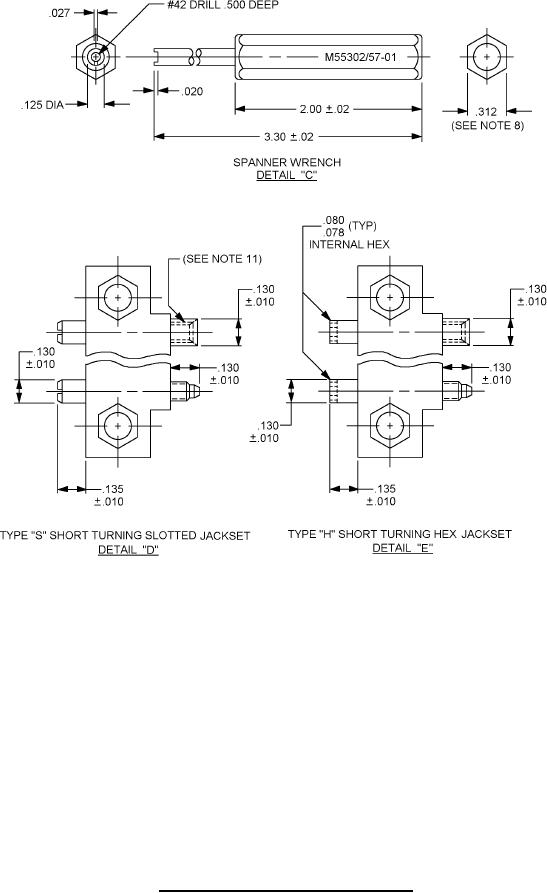

FIGURE 1. Connectors, plug, .100 (2.54 mm) spacing - Continued.
3
