INCH-POUND
MIL-DTL-55302/59H
3 February 2004
SUPERSEDING
MIL-C-55302/59G
23 September 1992
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
PLUG, PIN CONTACTS, DECADE INCREMENTS 90, 100 AND 120 CONTACT POSITIONS
FOR PRINTED WIRING BOARDS (.100 SPACING)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-55302.

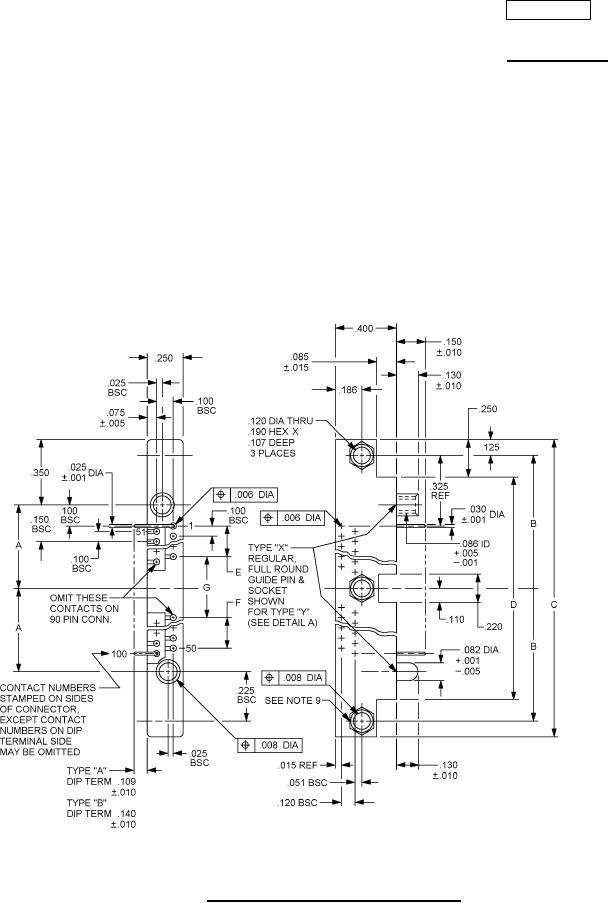

FIGURE 1. Connectors, plug, .100 (2.54 mm) spacing.
AMSC N/A
FSC 5935
