INCH-POUND
MIL-DTL-55302/7E
18 May 2006
SUPERSEDING
MIL-DTL-55302/7D
3 February 2003
DETAIL SPECIFICATION SHEET
CONNECTORS, PRINTED CIRCUIT SUBASSEMBLY AND ACCESSORIES:
PLUG, PIN CONTACTS, RIGHT-ANGLE, FOR MULTILAYERED PRINTED WIRING BOARDS (.100 SPACING)
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-55302.

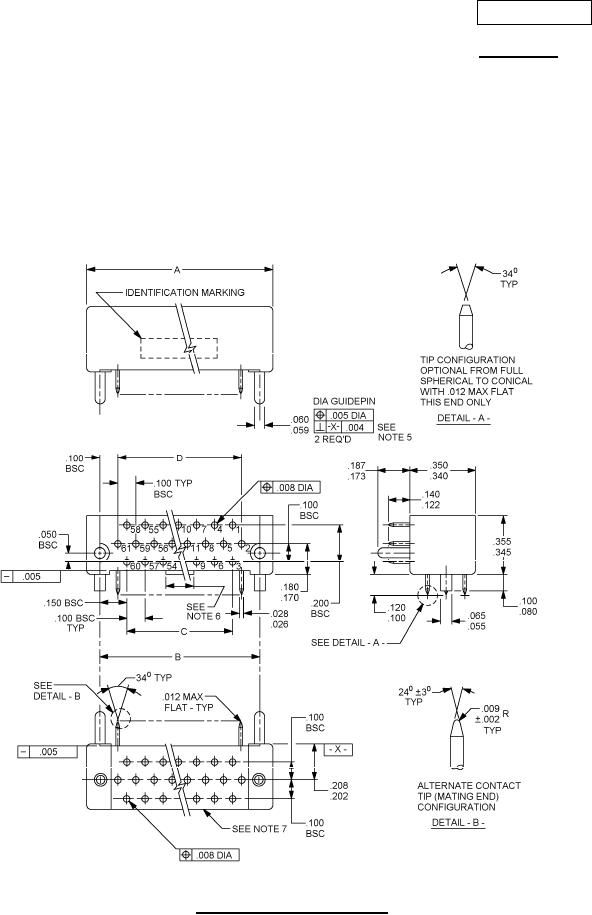

FIGURE 1. Connectors, plug (.100 spacing).
AMSC N/A
FSC 5935
