MIL-DTL-55302/74D
Inches
mm
Inches
mm
.050
1.27
.850
21.59
.100
2.54
.900
22.86
.150
3.81
.950
24.13
.200
5.08
1.000
25.40
.250
6.35
1.050
26.67
.300
7.62
1.100
27.94
.350
8.89
1.150
29.21
.400
10.16
1.200
30.48
.450
11.43
1.250
31.75
.500
12.70
1.300
33.02
.550
13.97
1.350
34.29
.600
15.24
1.400
35.56
.650
16.51
1.450
36.83
.700
17.78
.750
19.05
.800
20.32
NOTE: Contacts 1, 30, 31, and 59 are identified on the front and rear of the connector per the insert arrangements.

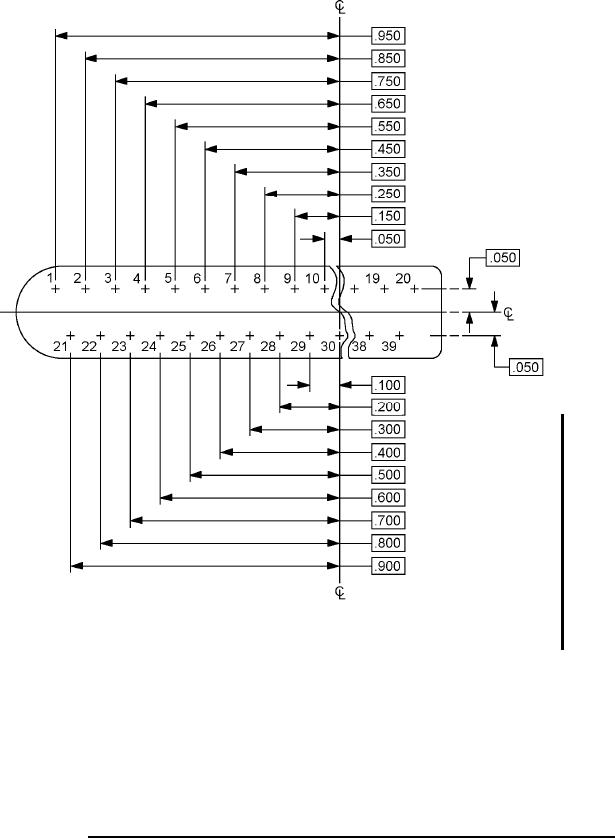

FIGURE 2. Insert arrangement for .100 (2.54 mm) contact spacing connectors (male engaging face) - Continued.
3
