MIL-DTL-55302/84C
Inches
mm
Inches
mm
Inches
mm
.001
0.03
.074
1.88
.382
9.70
.002
0.05
.080
2.03
.420
10.67
.003
0.08
.100
2.54
.624
15.85
.020
0.51
.116
2.95
.638
16.21
.021
0.53
.118
3.00
.690
17.53
.025
0.64
.156
3.96
.855
21.72
.036
0.91
.158
4.01
.82
20.8
.048
1.22
.170
4.32
.880
22.35
.052
1.32
.250
6.35
.895
22.73
.058
1.47
.262
6.65
1.135
28.83
.062
1.57
.350
8.79
1.172
29.77
.071
1.80
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ± .005 (0.13 mm) for three place decimals, ± .02 (0.5 mm) for two
place decimals, and ±2º on angles.
4. These connectors mate with connectors in accordance with MIL-DTL-55302/82.
5. Dimensions shall be .025 nominal, .022 minimum.
6. Minimum point of .210 (5.33 mm) at which gauge having the minimum diameter of the mating pin and a
square face encase socket contact spring.
7. Minimum point of .304 (7.72 mm) at which gauge having the minimum diameter of the mating pin and a
square face encase socket contact spring.

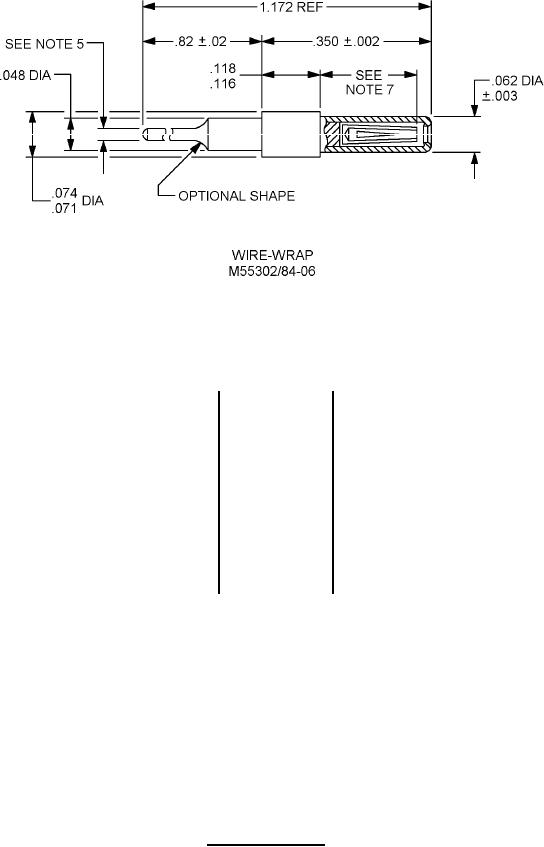

FIGURE 1. Contact termination Continued.
3
