MIL-DTL-641/20B

Inches

.002

0.05

.100

2.54

.010

0.25

.220

5.60

.035

0.89

.795

20.19

.061

1.55

Dimensions are in inches.

Metric equivalents are given for information only.

All dimensions are after plating.

Solder lug terminals (not shown) shall meet the requirements of MIL-DTL-641, 3.5.5, and the "A"

dimensions of figure 1 shall be .325 inch (8.26mm) maximum.

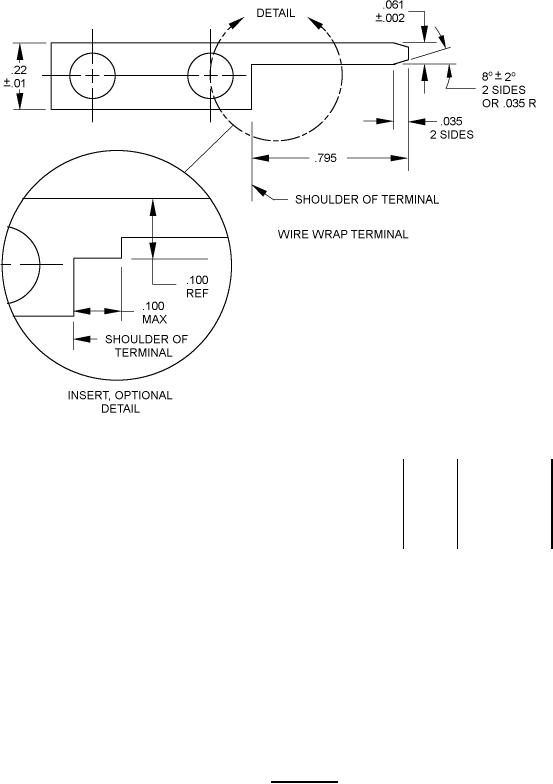

FIGURE 3. Terminals.
