INCH-POUND
MIL-DTL-83503/7E
21 July 2004
SUPERSEDING
MIL-DTL-83503/7D
17 June 1998
DETAIL SPECIFICATION SHEET
CONNECTOR, ELECTRICAL, FLAT CABLE, NONENVIRONMENTAL
PLUG WITH DUAL POLARIZATION, ROUND CONDUCTOR, INSULATION DISPLACING
NON-REMOVABLE SOCKET CONTACTS (.100 X .100 SPACING)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-83503.

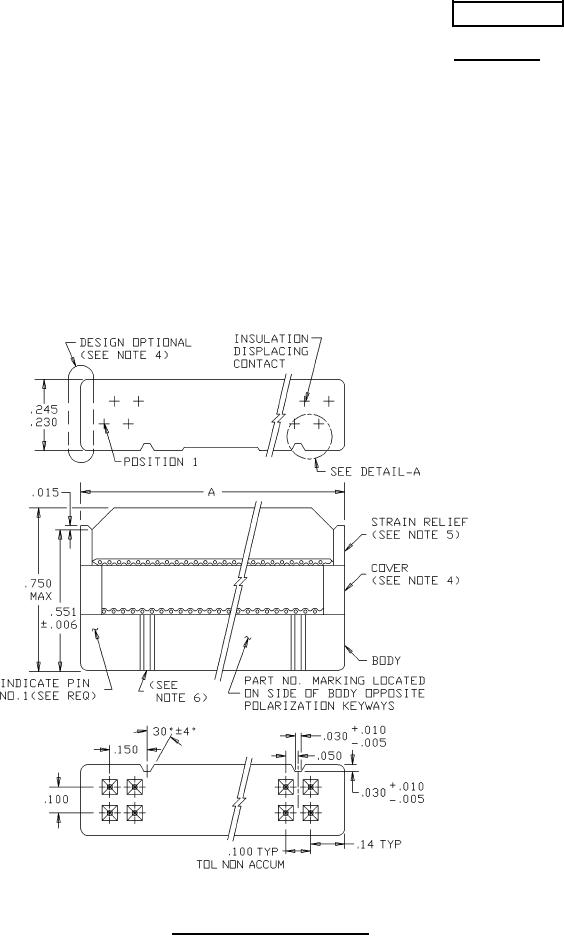

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5935
