MIL-DTL-83503/7E
Inches
mm
Inches
mm
.005
0.13
.100
2.54
.006
0.15
.14
3.6
.010
0.25
.150
3.81
.015
0.38
.230
5.84
.020
0.51
.245
6.25
.030
0.76
.551
14.00
.050
1.27
.750
19.05
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified, tolerances are ±.01 inch (0.3 mm) for two place decimals and
±.005 inch (0.13 mm) for three place decimals and ±2° on angles.
4. The method used to connect the cover to the body is optional, but shall meet the requirements of
MIL-DTL-83503 and this specification.
5. Strain relief shall be provided. Strain relief design is optional. The strain relief may be either
separate or an integral part of cover.
6. For 10 and 14 position connectors the polarizing feature on this end is non-existent.
7. Tolerances are non-cumulative.

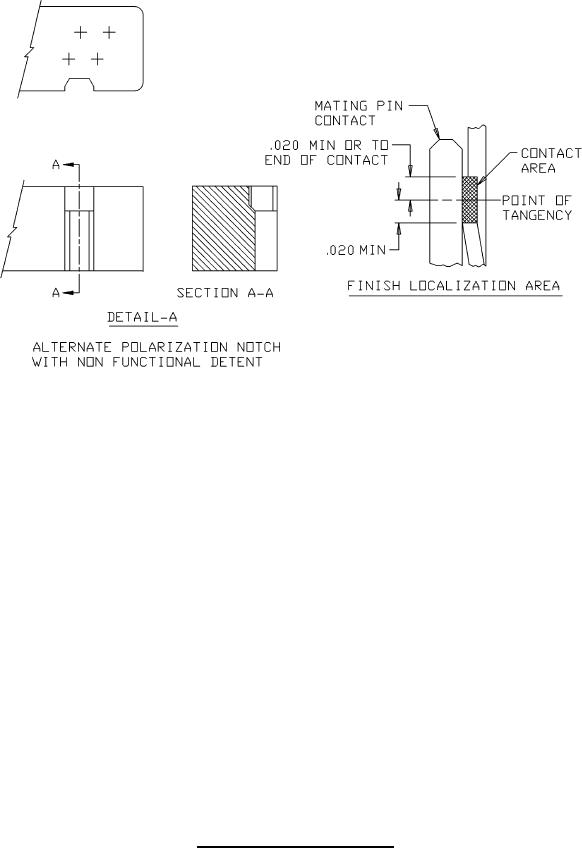

FIGURE 1. Dimensions and configuration - Continued.
2
