MIL-DTL-83513/10D
NOTE: Engaging face of pin insert shown, cavity identification numbers are for reference only and do not appear on
the part.

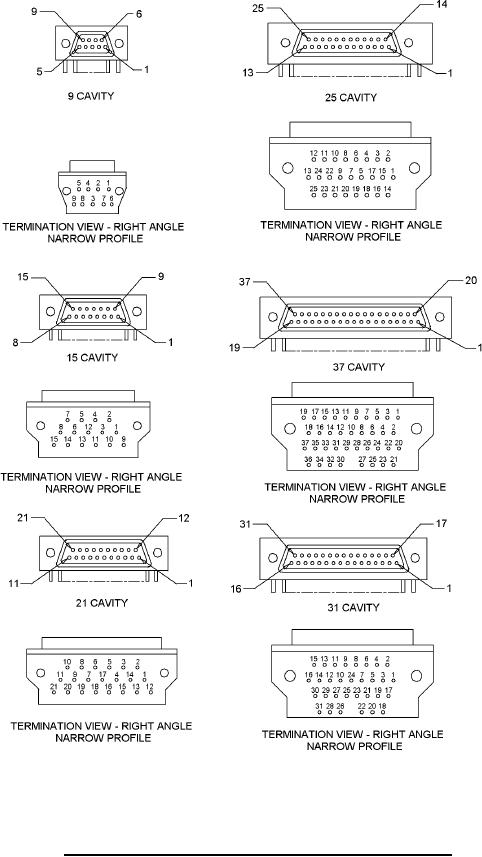

FIGURE 2. Insert arrangement, termination view - right angle - narrow profile.
4
