MIL-DTL-83513-10 Connectors, Electrical, Rectangular, Plug, Microminiature, Polarized Shell, Right Angle, Pin Contacts, 2 Row, Solder Type, Narrow Profile, 9 Through 37 Contacts, Printed Circuit Board

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

MIL-DTL-83513/10D

Inches

.020

0.51

.158

4.01

.040

1.02

.565

14.35

.050

1.27

.715

18.16

.083

2.11

.865

21.97

.096

2.44

.965

24.51

.100

2.54

1.115

28.32

.108

2.74

1.265

32.13

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are � .005 (0.13 mm).

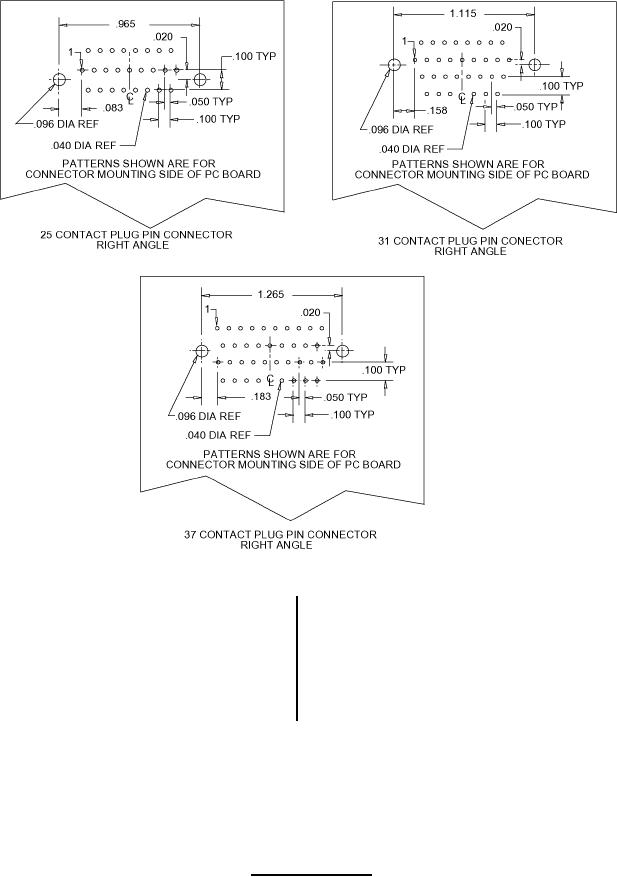

FIGURE 3. Layout arrangement - Continued.
