INCH-POUND
MIL-DTL-83513/12D
6 March 2009
SUPERSEDING
MIL-DTL-83513/12C
20 September 2002
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR, PLUG, MICROMINIATURE,
POLARIZED SHELL, RIGHT ANGLE, PIN CONTACTS, 4 ROW, SOLDER TYPE,
NARROW PROFILE, 100 CONTACTS, PRINTED CIRCUIT BOARD
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83513.

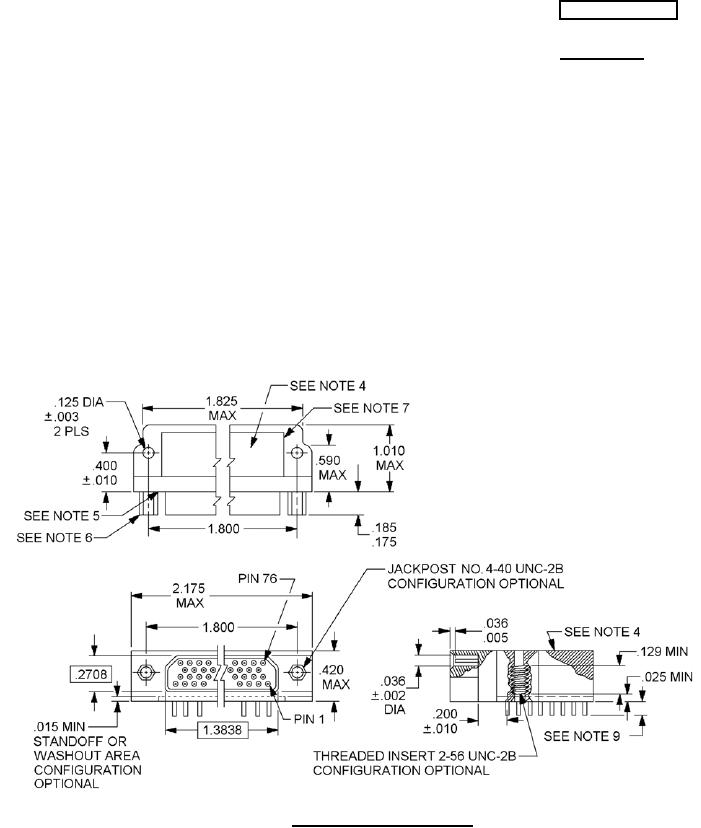

FIGURE 1. Connector, plug, .050 spacing.
AMSC N/A
FSC 5935
