MIL-DTL-83513-12 Connectors, Electrical, Rectangular, Plug, Microminiature, Polarized Shell, Right Angle, Pin Contacts, 4 Row, Solder Type, Narrow Profile, 100 Contacts, Printed Circuit Board

Pages 1 - 2 - 3 - 4 - 5 - 6

MIL-DTL-83513/12D

Inches

.040

1.02

.050

1.27

.100

2.54

.108

2.74

.125

3.18

1.215

30.86

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerances are  .005 (0.013 mm).

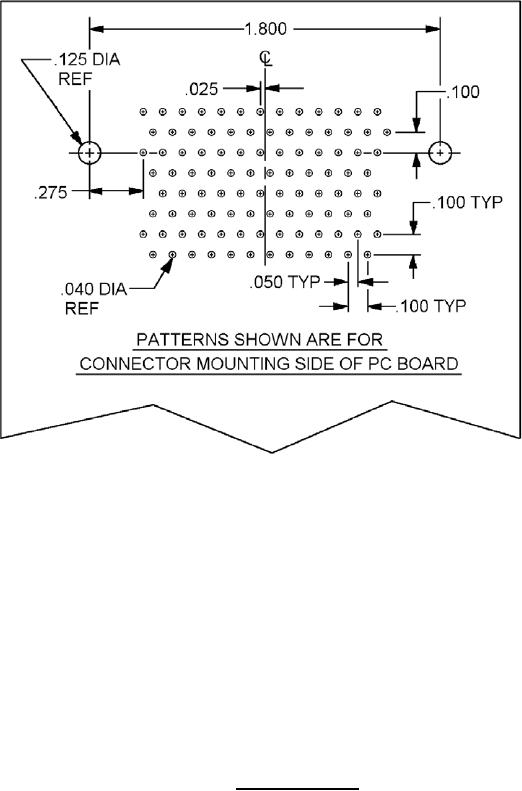

FIGURE 3. Layout arrangement.
