INCH-POUND
MIL-DTL-83513/13D
6 March 2009
SUPERSEDING
MIL-DTL-83513/13C
20 September 2002
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR, RECEPTACLE, MICROMINIATURE,
POLARIZED SHELL, RIGHT ANGLE, SOCKET CONTACTS, 2 ROW, SOLDER TYPE,
NARROW PROFILE, 9 THROUGH 37 CONTACTS, PRINTED CIRCUIT BOARD
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-83513.

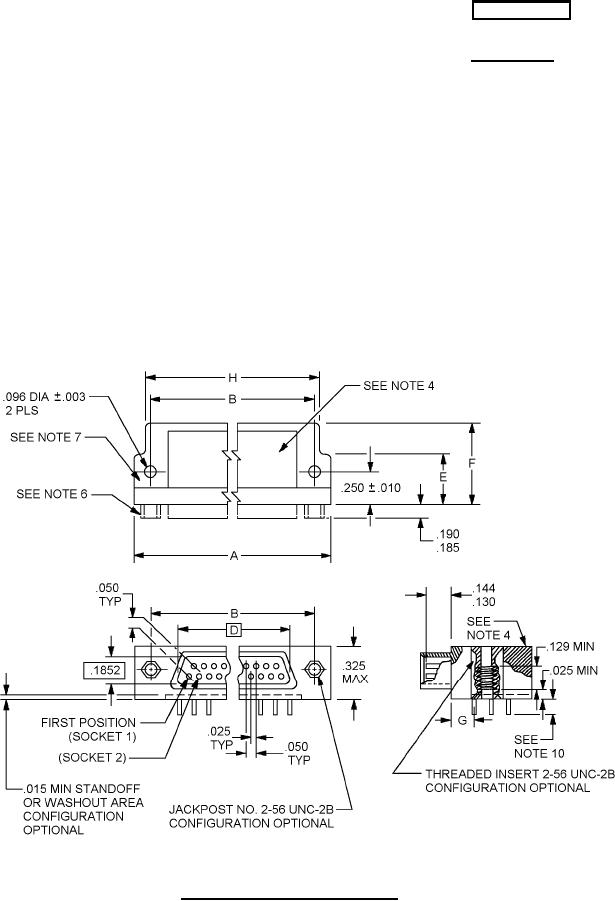

FIGURE 1. Connector, receptacle, .050 spacing.
AMSC N/A
FSC 5935
