MIL-DTL-83513-13 Connectors, Electrical, Rectangular, Receptacle, Microminiature, Polarized Shell, Right Angle, Socket Contacts, 2 Row, Solder Type, Narrow Profile, 9 Through 37 Contacts, Printed Circuit Board

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9

MIL-DTL-83513/13D

Inches

.020

0.51

.100

2.54

.715

18.16

.040

1.02

.108

2.74

.865

21.97

.050

1.27

.158

4.01

.965

24.51

.083

2.11

.183

4.65

1.115

28.32

.096

2.44

.565

14.35

1.265

32.13

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3. Unless otherwise specified, tolerance is  .005 (0.13 mm) on decimals.

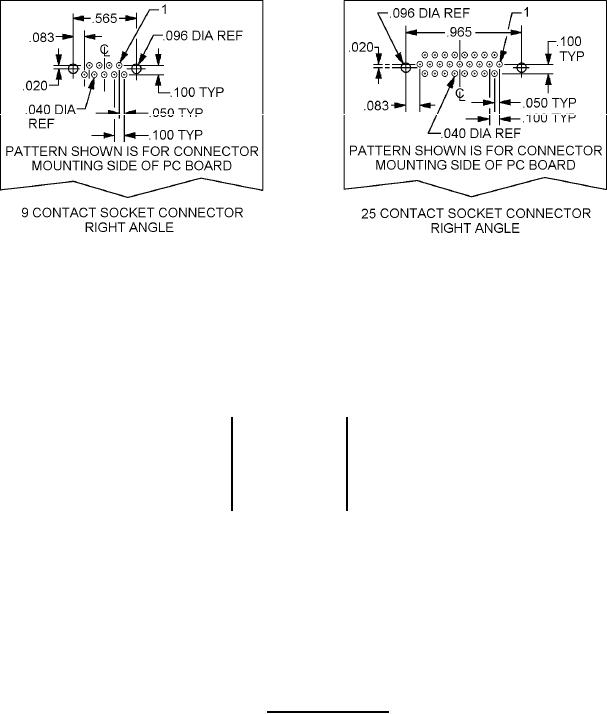

FIGURE 3. Layout arrangement.
