INCH-POUND
MIL-DTL-83513/18D
6 March 2009
SUPERSEDING
MIL- DTL-83513/18C
27 February 2003
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR, PLUG, MICROMINIATURE,
POLARIZED SHELL, RIGHT ANGLE, PIN CONTACTS, 4 ROW, SOLDER TYPE,
STANDARD PROFILE, 100 CONTACTS, PRINTED CIRCUIT BOARD
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-83513.
Inches
mm
Inches
mm
Inches
mm
Inches
mm
.003
0.08
.050
1.27
.177
4.50
1.3838
35.148
.007
0.18
.0669
1.699
.185
4.70
1.800
45.72
.0038
0.097
.125
3.18
.225
5.72
2.500
63.50
.010
0.25
.140
3.56
.2708
6.878
2.780
70.61
.015
0.38
.150
3.81
.420
10.67
.025
0.64
.175
4.45
.765
19.43

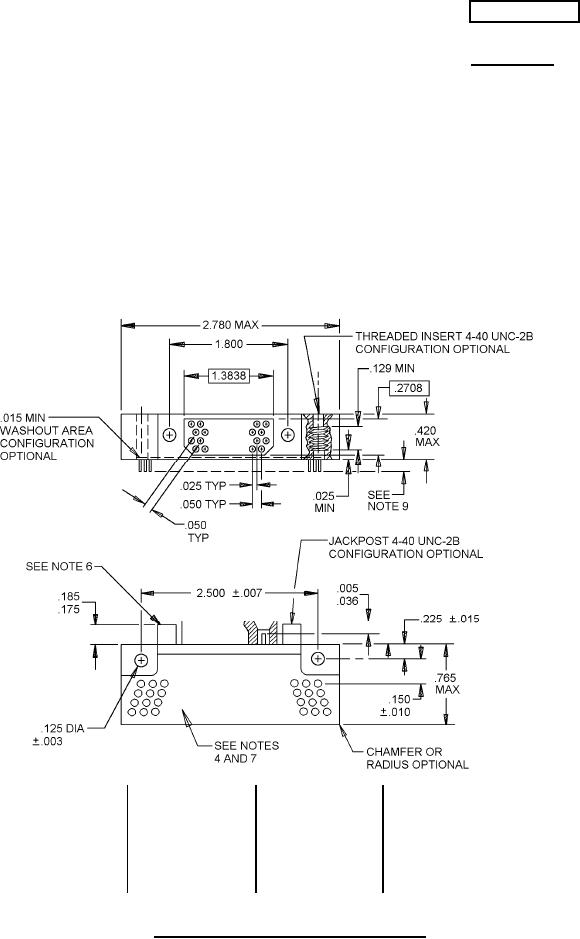

FIGURE 1. Connector, plug, .050 inch (1.27mm) spacing.
AMSC N/A
FSC 5935
