MIL-DTL-83513-18 Connectors, Electrical, Rectangular, Plug, Microminiature, Polarized Shell, Right Angle, Pin Contacts, 4 Row, Solder Type, Standard Profile, 100 Contacts, Printed Circuit Board

Pages 1 - 2 - 3 - 4 - 5 - 6


MIL-DTL-83513/18D
NOTE: Engaging face of pin insert shown, cavity identification numbers are for reference only and do not appear on
the part.

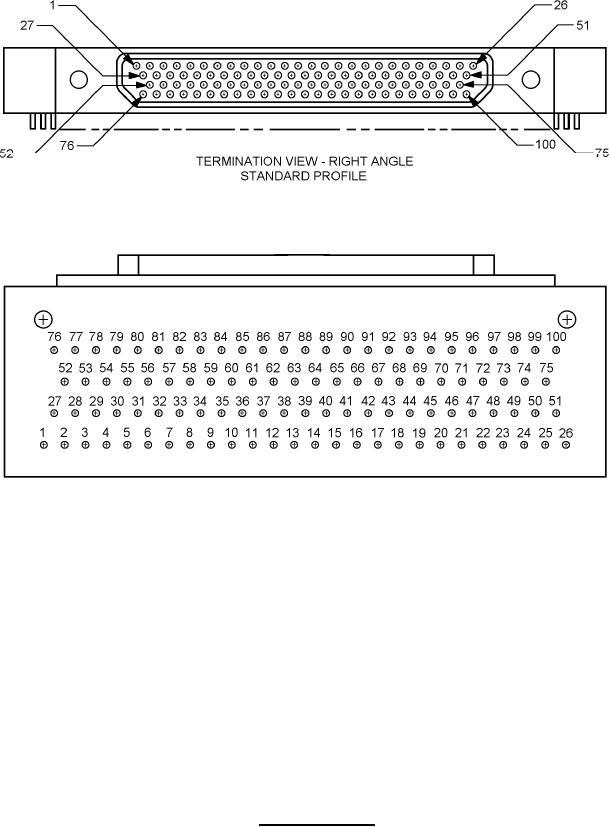

FIGURE 2. Insert arrangement.
