INCH-POUND
MIL-DTL-83513/2H
6 March 2009
SUPERSEDING
MIL-DTL-83513/2G
25 June 2002
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, RECTANGULAR, RECEPTACLE, MICROMINIATURE,
POLARIZED SHELL, SOCKET CONTACTS, CLASS M, SOLDER TYPE
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-83513.

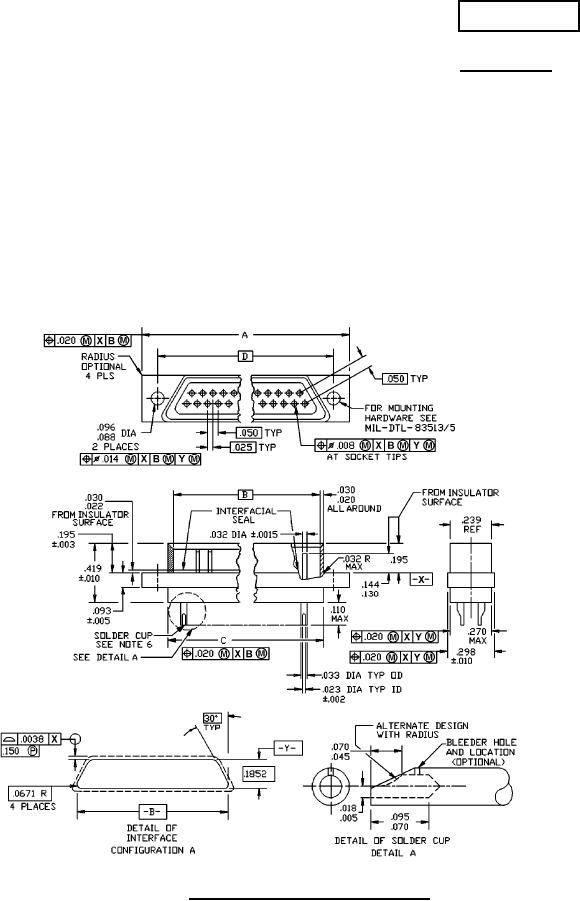

FIGURE 1. Connector, receptacle, .050 spacing.
AMSC N/A
FSC 5935
