MIL-DTL-83517/1A
Inches mm
.015 0.38

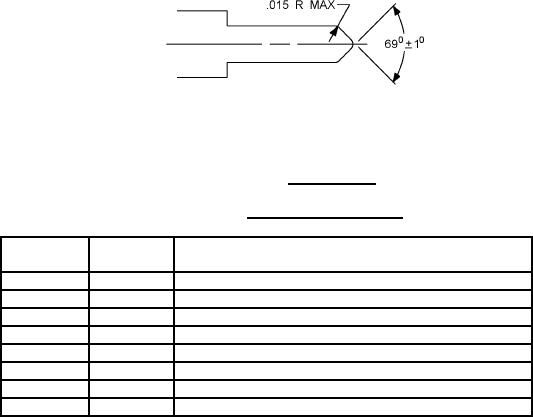

FIGURE 3. Test pin data.
TABLE I. PIN and characteristics.
PIN
Connector
M83517/1-
figure no.
Characteristics
31001
1
2 hole flange mount. .020 inch (0.51 mm) wide tab.
31002
1
2 hole flange mount. .050 inch (1.27 mm) wide tab.
31003
2
4 hole flange mount. .020 inch (0.51 mm) wide tab.
31004
2
4 hole flange mount. .050 inch (1.27 mm) wide tab.
32001
1
2 hole flange mount. .020 inch (0.51 mm) wide tab.
32002
1
2 hole flange mount. .050 inch (1.27 mm) wide tab.
32003
2
4 hole flange mount. .020 inch (0.51 mm) wide tab.
32004
2
4 hole flange mount. .050 inch (1.27 mm) wide tab.
Permeability of nonmagnetic materials: Applicable.
Seal:
Hermetic sealed connectors: Not applicable.
Pressurized and weatherproof connectors: Not applicable.
Insulation resistance: 5,000 megohms minimum, in accordance with test procedure EIA-364-21.
Center contact retention:
Axial force: 6 pounds minimum.
Torque: 4 inch-pounds minimum.
Dielectric withstanding voltage: In accordance with test procedure EIA-364-20, test condition I.
Test voltage 1,000 V rms.
Corrosion: In accordance with test procedure EIA-364-26 test condition B.
4
