MIL-DTL-83517-10 Connector, Receptacles, Electrical, Coaxial, Radio Frequency, Strip Or Microstrip Transmission Line, Series, Sma \(Socket Contact, Flange Mounted\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18

MIL-DTL-83517/10A

Inches

.001

.03

.0370

.940

.004

.10

.065

1.65

.005

.13

.102

2.59

.006

.15

.115

2.92

.010

.25

.170

4.32

.021

.53

.340

8.64

.0355

.90

.375

9.53

.510

12.95

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

3 All undimensioned pictorial configurations are for reference purposes only.

4. Number two screws are suggested for mounting.

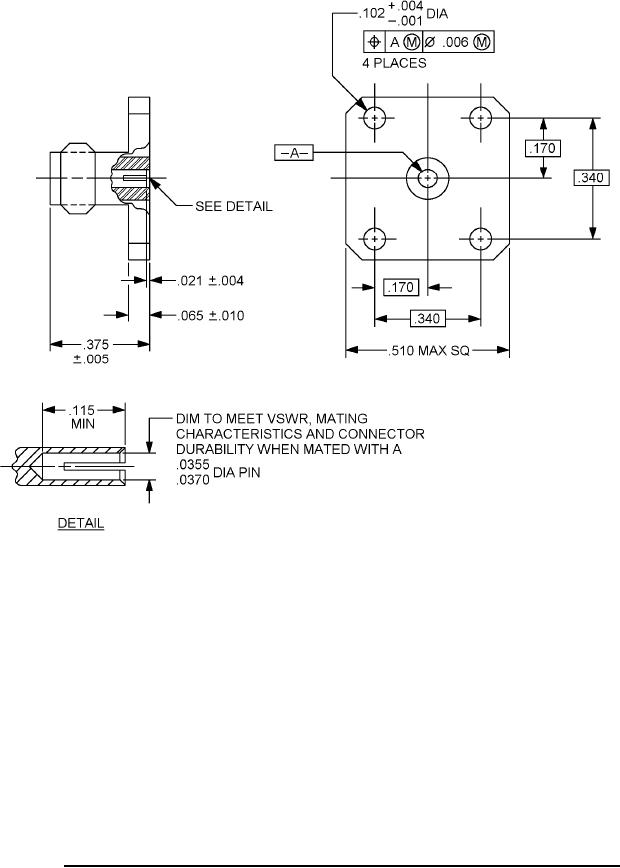

FIGURE 4. Series SMA (.115 inch minimum) socket contact (4 hole) flange mounted receptacle.
