MIL-DTL-83538/1D

Inches

6.42

0.106

34.00

1.34

7.24

0.285

39.93

1.572

16.76

0.660

NOTES:

1. Dimensions are in millimeters.

2. Inch equivalents are given for information only.

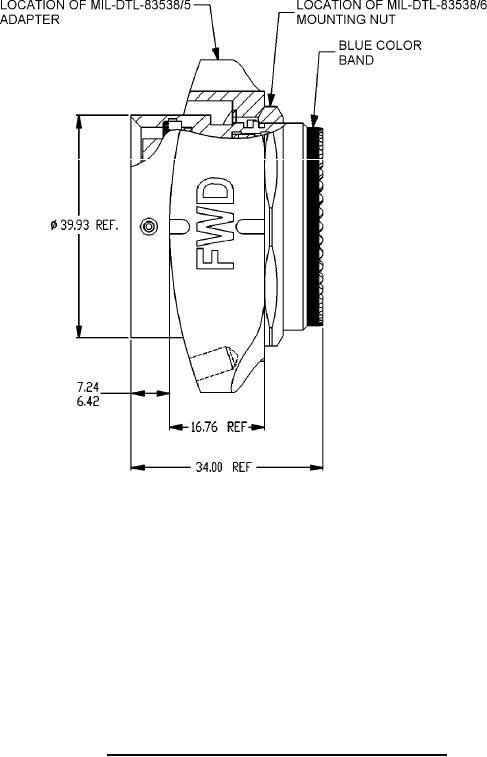

FIGURE 2. Store receptacle with adapter plate � types 1 and 2.
