MIL-DTL-83538/4C
Note: The spigots in styles B and D are rotated 90° from those in styles A and C.

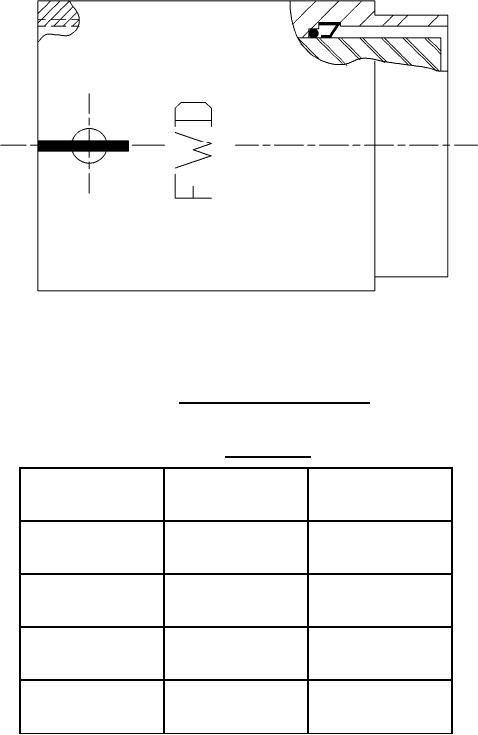

FIGURE 2. Launcher receptacle, style B.
TABLE I. Spigot styles.
Spigot Style
L (mm)
Spigot angle
Spigot Span
A
59.05
Normal
58.95
Rotated 90°
B
59.05
58.95
To A
C
68.68
Normal
67.97
Rotated 90°
D
68.68
67.97
To C
