MIL-DTL-83723/35F

Inches

.038

0.97

.042

1.07

.050

1.27

.072

1.83

.110

2.79

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for general information only.

3. Unless otherwise specified, tolerances are .005 (0.13 mm) for three place decimals,

.010 (0.25)

for two place decimals, and angular tolerances X = 1 0 , X X = 30 .

4. Dimensions apply after plating.

5. Remove all burrs and sharp edges.

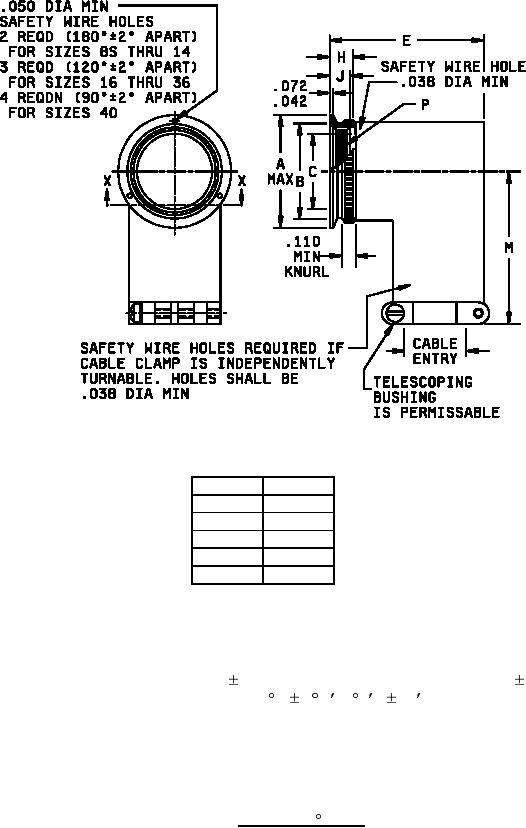

FIGURE 3. Type A - 90 clamp.
