MIL-PRF-31031/11B
Stripping dimensions
Dimension A
Cable
Minimum
Maximum
M17/130-RG402
.080
.090
group XVI
(2.03 mm)
(2.29 mm)
M17/133-RG405
.065
.075
group XVII
(1.65 mm)
(1.91 mm)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Tapering of the center conductor is required see manufacturers instructions.
4. All undimensioned pictorial configurations are for reference purposes only.

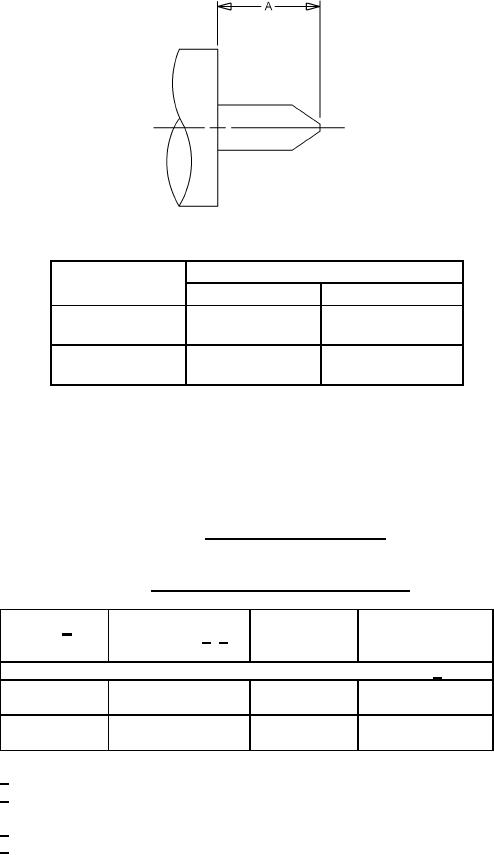

FIGURE 3. Cable stripping dimensions.
TABLE I. PIN's cross-reference and dimensions.
Applicable cable
Inches
PIN 1/
and group 2/ 3/
Dimensions
(millimeters)
M31031/11
M17/
maximum
Category E - Field serviceable (no special tools required) 4/
130-RG402
.715
E**01
group XVI
A
(18.03 mm)
133-RG405
.715
E**02
group XVII
A
(18.03 mm)
1/ These connectors have captivated center contacts.
2/ The cables are to be used when performing tests, however, all the cables in the
specification sheet must accommodate the connectors.
3/ The latest version of the cable is applicable.
4/ Kit number - Omni Spectra T-200, Amphenol 901-2500, or equivalent.
3
