MIL-PRF-31031/12A
Stripping dimensions
Dimensions A
Cable
Minimum
Maximum
M17/130-RG402
.080
.090
Group XVI
(2.03 mm)
(2.29 mm)
M17/133-RG405
.065
.075
Group XVII
(1.65 mm)
(1.91 mm)
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Tapering of the center conductor is required see manufacturers instructions.
4. All undimensioned pictorial configurations are for reference purposes only.

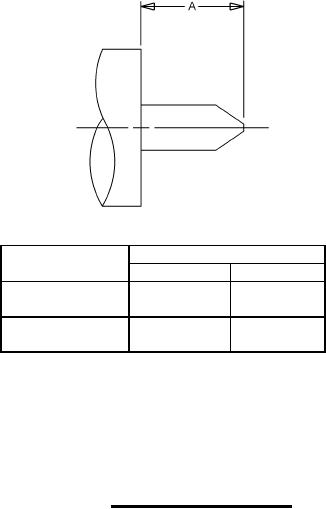

FIGURE 2. Cable stripping dimensions.
ENGINEERING DATA:
Nominal impedance: 50 ohms.
Frequency range: 0 to 18 GHz (frequency limit is dependent on cable used).
Voltage rating:
MIL-C-17/130 and group XVI: 500 V rms at sea level; 125 V rms at 70.000 feet.
MIL-C-17/130 and group XVII: 335 V rms at sea level; 85 V rms at 70.000 feet.
Temperature rating: -65°C to +125°C.
REQUIREMENTS: The following tests assure connector integrity within the typical operating conditions
and application. Alternate methods shall be made known to the qualifying authority prior to performance
of the test. The test methods described in the general specification and herein are proven methods and
shall be the referee method in cases of dispute.
