MIL-PRF-39012/128C
Inches mm
Inches
mm
Inches mm
.016 0.41
.215
5.46
.504 12.80
.023 0.58
.225
5.72
.591 15.01
.046 1.17
.227
5.77
.635 16.13
.063 1.60
.230
5.84
1.20 30.48
.105 2.67
.414
10.52
.130 3.30
.492
12.45
.176 4.47
.500
12.70
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Unless otherwise specified all tolerances are .005(0.13mm) inches
4. Wrench flats are to accommodate standard wrench opening in accordance with FED-STD-H28,
appendix 10.
4. All undimensioned pictorial configurations are for reference purposes only.
5. Solder pocket shall accommodate a wire of .059 (1.50 mm) diameter maximum.
6. Series BNC, socket contact interface in accordance with MIL-STD-348.

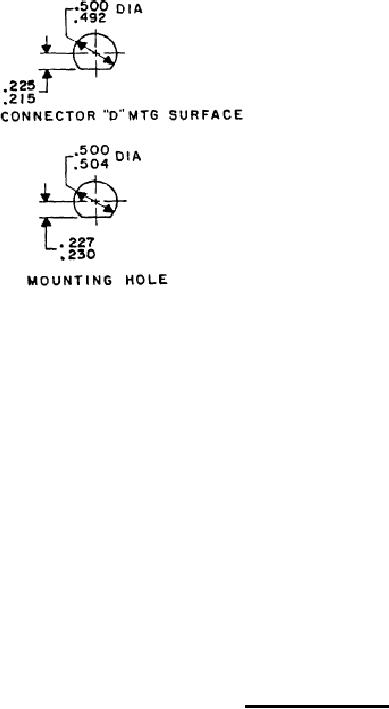

FIGURE 1. General configuration - Continued.
