MIL-PRF-39012/23B
M39012/23-X002
M39012/23-X001
Inches
mm
Inches
mm
.022
.56
.368
9.35
.059
1.50
.375
9.53
.087
2.21
.380
9.65
.099
2.51
.384
9.75
.153
3.89
.429
10.90
.156
3.96
.434
11.02
.159
4.04
.439
11.15
.181
4.60
.495
12.57
.184
4.67
.505
12.83
.187
4.75
.508
12.90
.190
4.83
NOTES:
1. Dimensions are in inches.
2. For dimensions `A', `B', `C' and `D', see table I.
3. Metric equivalents are given for information only.
4. All undimensioned pictorial representations are for reference purposes only.
5. Bayonet studs and mounting flat of body shall be within 3° of the orientation shown.
6. Series BNC, socket contact interface in accordance with MIL-STD-348.
7. Gasket applies to X001 only.

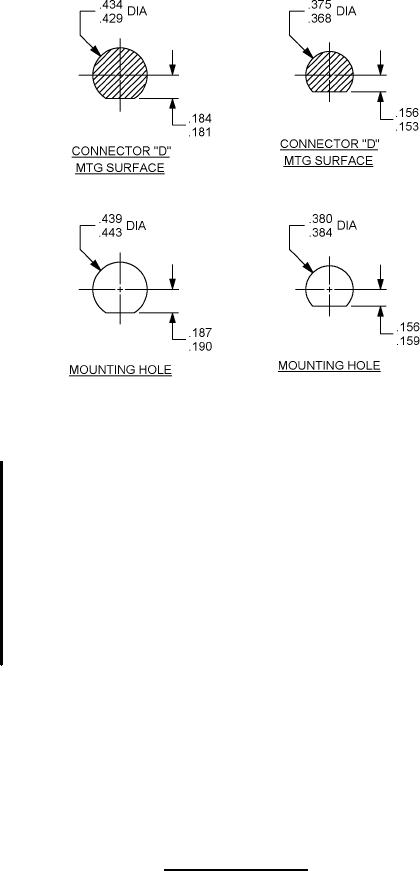

FIGURE 1. General configuration Continued.
