MIL-PRF-39012-69 Connectors, Plugs, Electrical, Coaxial, Radio Frequency, Series Smb \(Cabled, Socket Contact, Right Angle, Class 2\)

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12

MIL-PRF-39012/69C

Inches

.010

0.25

.020

0.51

.200

5.08

.320

8.13

.380

9.65

NOTES:

1. Dimensions are in inches.

2. Metric equivalents are given for information only.

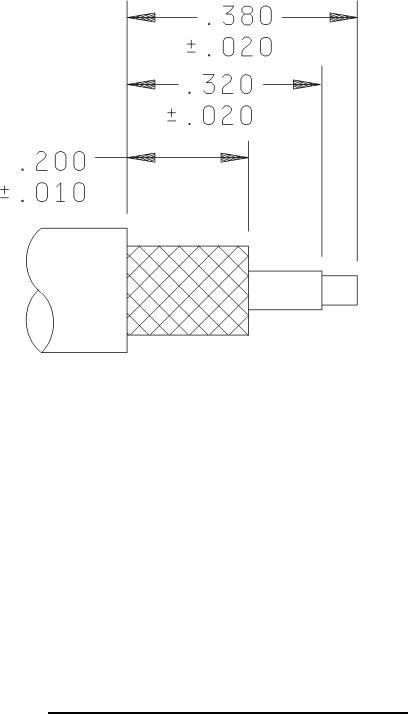

FIGURE 2. Cable stripping dimensions for category C connectors.
