MIL-PRF-39012E
Inches
mm
.12
3.05
.250
6.35
3.50
88.9
4.45
113.03
8.00
203.2

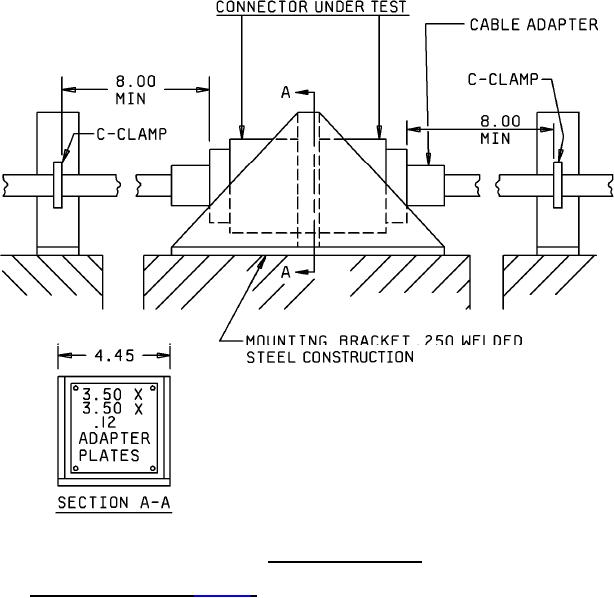

FIGURE 3. Vibration testing set-up
4.6.16 Shock (specified pulse) (see 3.19). The connector shall be mated with its mating connector
apply:
a. Receptacles and panel or bulkhead mounted connectors and adapters shall be mounted by
normal means. All other connectors and adapters shall be rigidly clamped to the vibration
table.
b. Acceleration requirements (see 3.1).
c.
Three blows in each of three mutually perpendicular planes; one of which shall be parallel
to the axis of the connector.
d. Continuity shall be monitored during shock as specified in 4.6.15(b).
e. Center contact resistance shall be measured in accordance with 4.6.13 after the shock test.
23
