MIL-PRF-39012 Connectors, Coaxial, Radio Frequency, General Specification ForThis specification covers the general requirements and tests for radio frequency connectors used with flexible RF cables and certain other types of coaxial transmission lines.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


MIL-PRF-39012E
Inches
mm
3.50
88.9
4.50
114.3
7.00
177.8
9.00
228.6

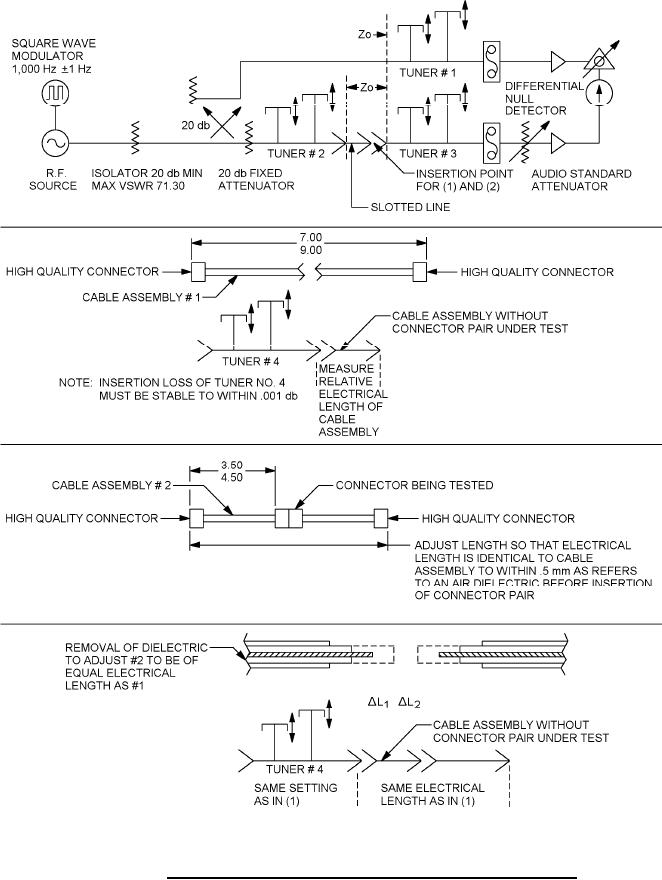

FIGURE 8. Method of insertion loss measurement of rated connector pair.
