INCH-POUND
MIL-PRF-49142/11D
18 April 2005
SUPERSEDING
MIL-PRF-49142/11C
27 February 2002
PERFORMANCE SPECIFICATION SHEET
CONNECTORS, TRIAXIAL, RADIO FREQUENCY, (SERIES TRT (CABLED)
RECEPTACLE, SOCKET CONTACT, CLASS 2)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and MIL-PRF-49142.
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
3. Metric equivalents are in parentheses.
4. Wrench flats are to accommodate standard wrench openings in accordance with FED-STD-H28.
5. 1.875 (47.63 mm) defines the maximum length of the connector when assembled to the appropriate
cable.
6. All undimensioned pictorial representations are for reference purpose only.
7. Interface shall be in accordance with MIL-STD-348, series TRT, socket contact.

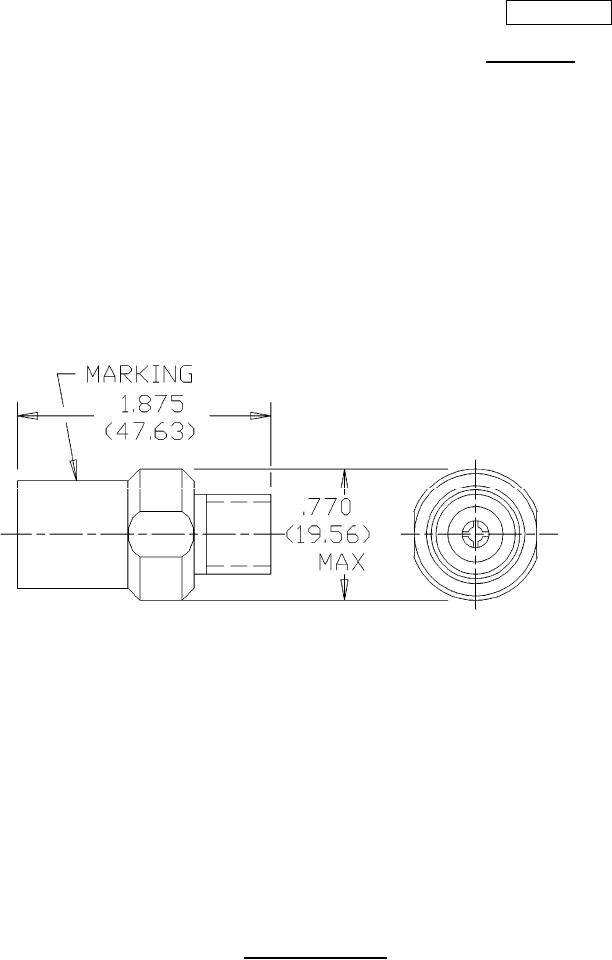

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
