MIL-PRF-55339/17B
Reference
Series
Contact
A, B, and C
BNC
Socket
Inches
mm
26.97
1.062
33.32
1.312
PIN M55339/17-00002 or M55339/17-70003
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All undimensioned pictorial representations are for reference purposes only.
4. Interfaces to be in accordance with MIL-STD-348, series BNC socket contact.

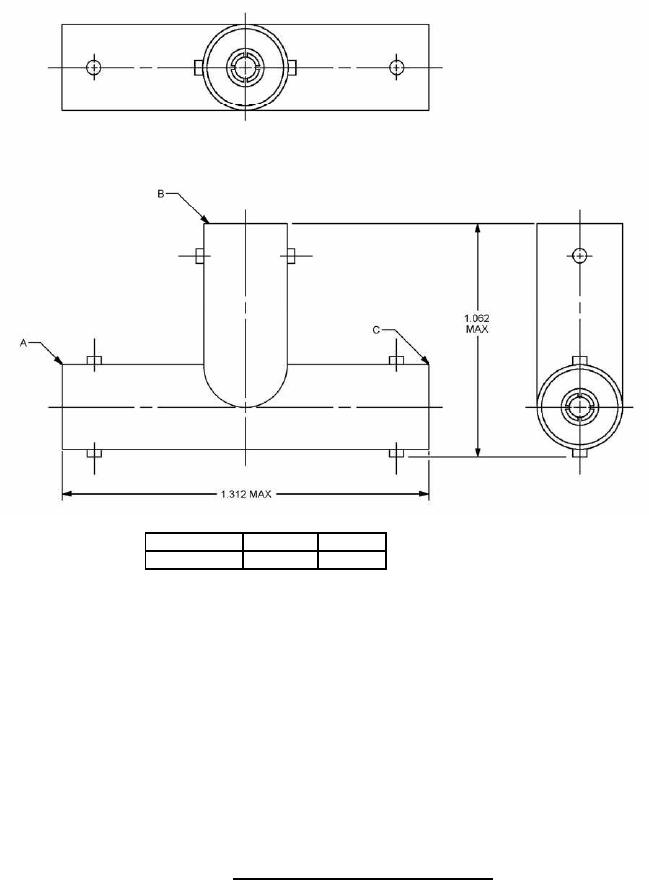

FIGURE 3. General configuration, jack - jack - jack.
4
