INCH-POUND
MIL-PRF-55339/18A
17 September 2004
SUPERSEDING
MIL-PRF-55339/18
6 May 1975
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY, IN-LINE,
(BETWEEN SERIES BNC PLUG TO SERIES N PLUG), CLASS 2
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the document described herein shall
consist of this specification sheet and MIL-PRF-55339.
Reference
Series
Contact
A
BNC
Pin
B
N
Pin
Inches
mm
.827
21.01
1.562
39.67
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All undimensioned pictorial representations are for reference purposes only.
4. Interface dimensions are in accordance with MIL-STD-348, series BNC pin contact and series N
pin contact.

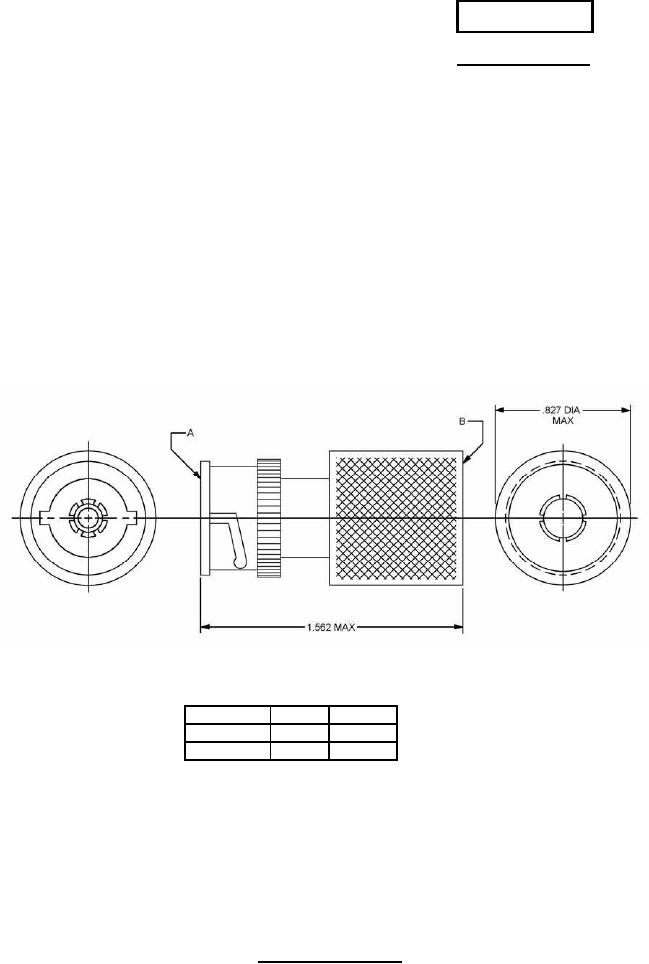

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
