INCH-POUND
MIL-PRF-55339/49A
10 January 2005
SUPERSEDING
MIL-PRF-55339/49
2 May 1977
PERFORMANCE SPECIFICATION SHEET
ADAPTER, CONNECTOR, COAXIAL, RADIO FREQUENCY
(BETWEEN SERIES N JACK TO SERIES BNC PLUG)
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-PRF-55339.
Reference
Series
Contact
A
BNC
Pin
B
N
Socket
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Metric equivalents are given for information only.
4. All undimensioned pictorial representations are for reference purposes only.
5. Interface shall be in accordance with MIL-STD-348.

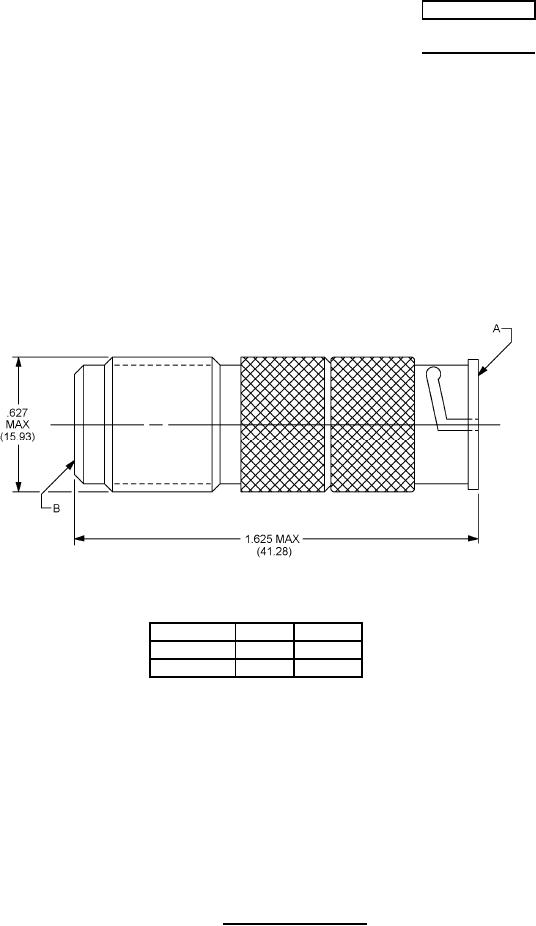

FIGURE 1. General configuration.
AMSC N/A
FSC 5935
