MIL-PRF-55339/6B
PIN: M55339/06-00001 or M55339/06-70002
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All undimensioned pictorial representations are for reference purposes only.
4. N interface, socket contact, in accordance with MIL-STD-348.
5. N interface, pin contact, in accordance with MIL-STD-348.
6. Maximum dimension applies when the coupling nut is biased forward.

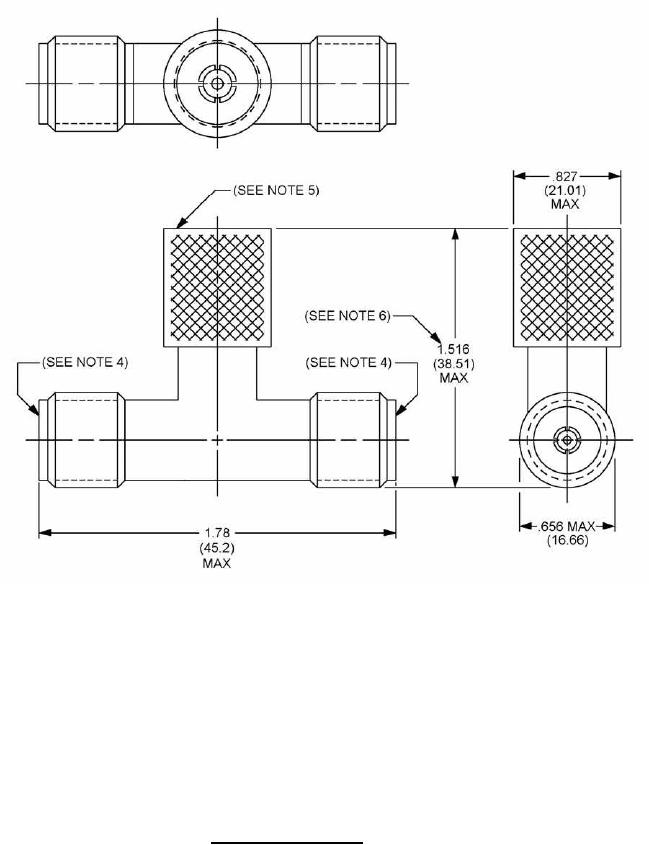

FIGURE 1. General configurations Continued.
2
