INCH-POUND
MS24266N
20 August 2009
SUPERSEDING MS24266M
6 February 2004
DETAIL SPECIFICATION SHEET
CONNECTORS, PLUG, ELECTRICAL, STRAIGHT, MINIATURE, CLASSES E, F, G AND R
Inactive for new design after 14 November 1977. For new design, use MIL-DTL-83723, series III.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26500.
Style P (pin insert)

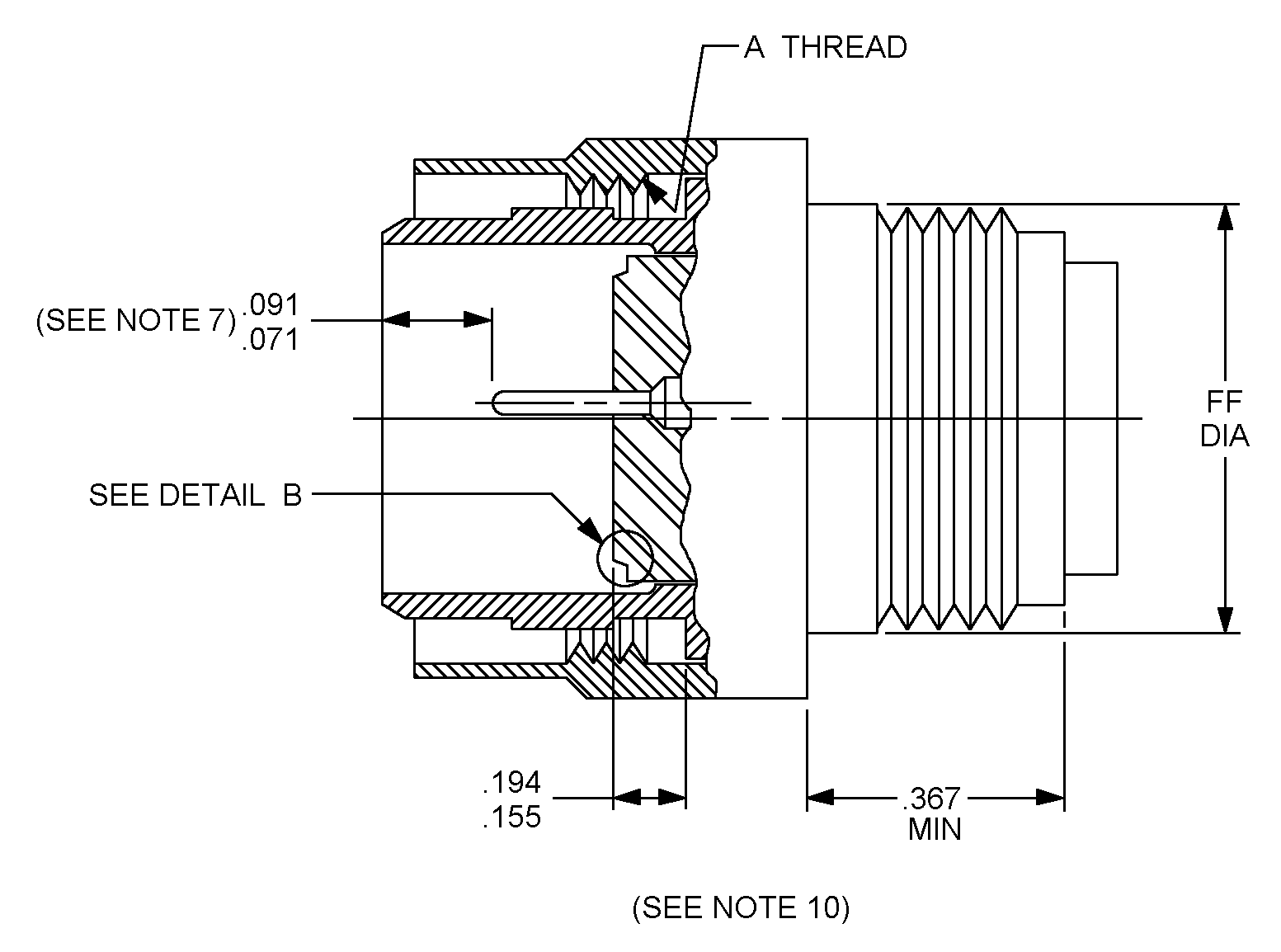

FIGURE 1. Plug, threaded for classes F, G and R.
AMSC N/A FSC 5935
