MS24285D
14 July 2005 SUPERSEDING MS24285C
6 May 1968
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, STYLE S, RACK AND PANEL, MINIATURE
Inactive for new design after 8 June 1999.
This specification is approved for use by all Departments and Agencies of the Department of Defense. The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-26518.
The Qualified Products List (QPL) associated with this inactive for new design specification will be maintained until acquisition of the product is no longer required, where upon the specification and QPL will be canceled.
Style S (socket insert)

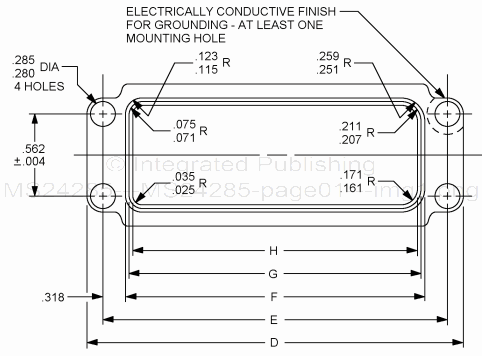

FIGURE 1. Connector dimensions and configurations.
AMSC N/A FSC 5935
