MS24285D
Environment Resistant (R) Receptacles
Shell size |
D ±.005 |
E ±.004 |
F ±.005 |
G |
H ±.005 |
A |
4.296 |
3.875 |
3.239 |
3.147 |
3.061 |
B |
2.866 |
2.445 |
1.809 |
1.717 |
1.631 |
C |
2.421 |
2.000 |
1.380 |
2.888 |
1.202 |

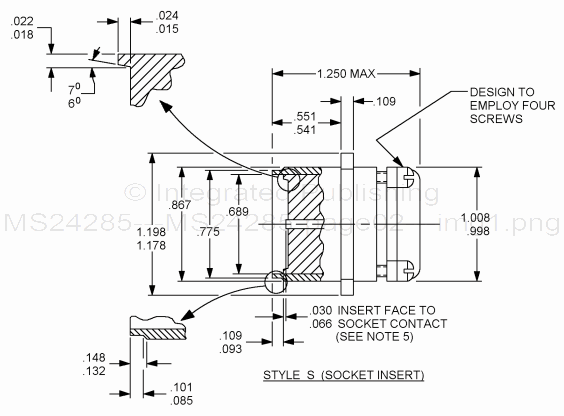

FIGURE 1. Connector dimensions and configurations - Continued.
