MS27501H
|
Shell size |
A dia +.001 -.005 |
F dia max |
H +.500 I -.250 Standard chain length |
J +.010 -.015 |
L max |
M min |
x |
Y |
LL max |
9 |
.572 |
.82 |
3.0 |
.567 |
.9 |
.58 |
77° |
113° |
1.16 |
11 |
.700 |
.94 |
67° |
123° |
|||||
13 |
.850 |
1.07 |
3.5 |
63° |
127° |
||||
15 |
.975 |
1.19 |
61° |
129° |
|||||
17 |
1.100 |
1.32 |
65° |
125° |
|||||
19 |
1.207 |
1.44 |
|||||||
21 |
1.332 |
1.57 |
4.0 |
||||||
23 |
1.457 |
1.69 |
69° |
121° |
|||||
25 |
1.582 |
1.82 |

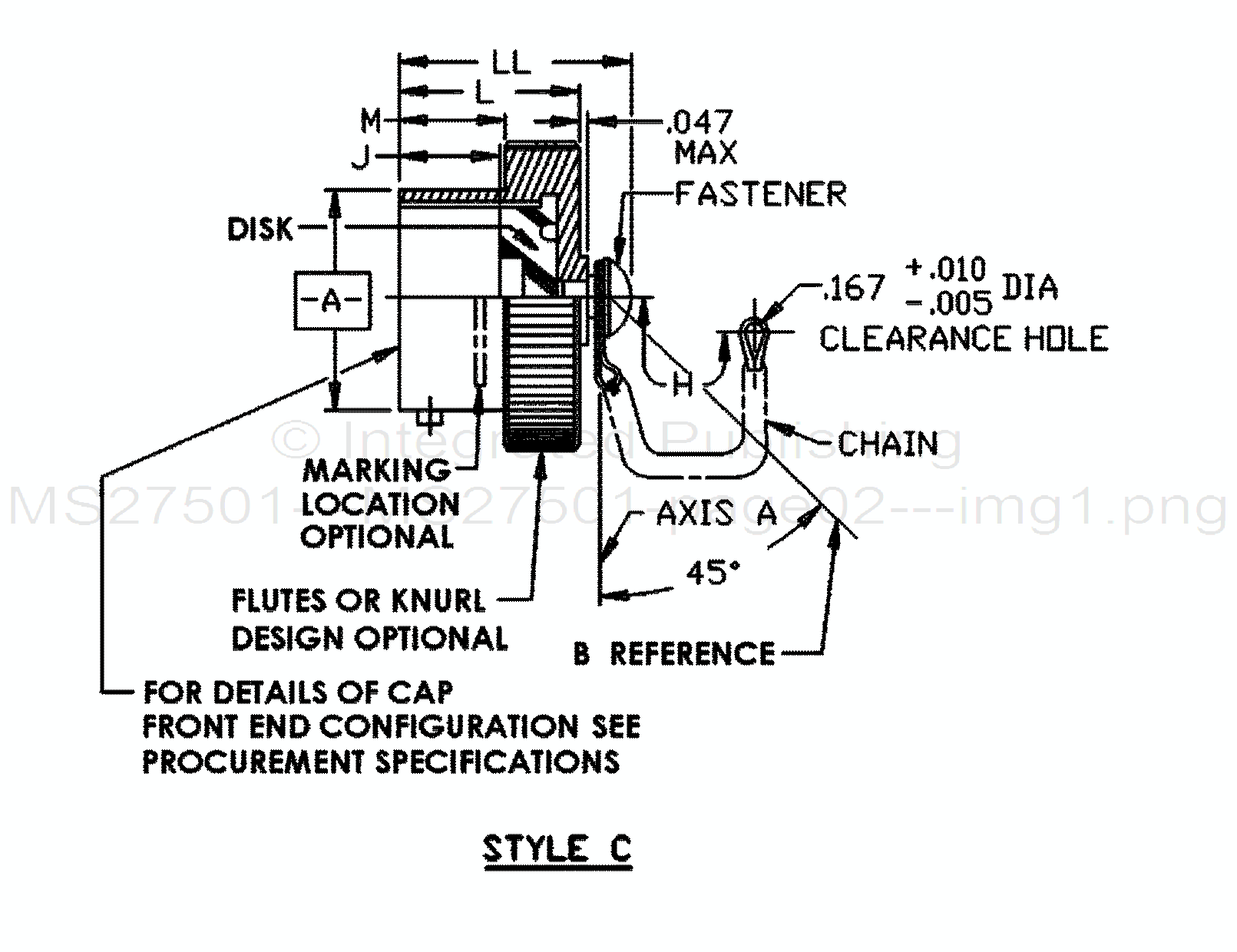

FIGURE 1. Cover - Continued.
