MS27510H
Shell size |
A dia +.001 -.005 |
H +.500 I -.250 standard chain length |
J +.010 -.015 |
L max |
M min |
Q dia max |
x BSC degree |
y BSC degree |
LL max |
8 |
.473 |
3.0 |
.222 |
.57 |
.31 |
.72 |
82° |
118° |
.82 |
10 |
.590 |
.85 |
72° |
128° |
|||||
12 |
.750 |
3.50 |
1.00 |
68° |
132° |
||||
14 |
.875 |
1.13 |
66° |
134° |
|||||
16 |
1.000 |
1.25 |
70° |
130° |
|||||
18 |
1.125 |
1.38 |
|||||||
20 |
1.250 |
4.0 |
1.50 |
||||||
22 |
1.375 |
1.63 |
74° |
126° |
|||||
24 |
1.500 |
1.75 |

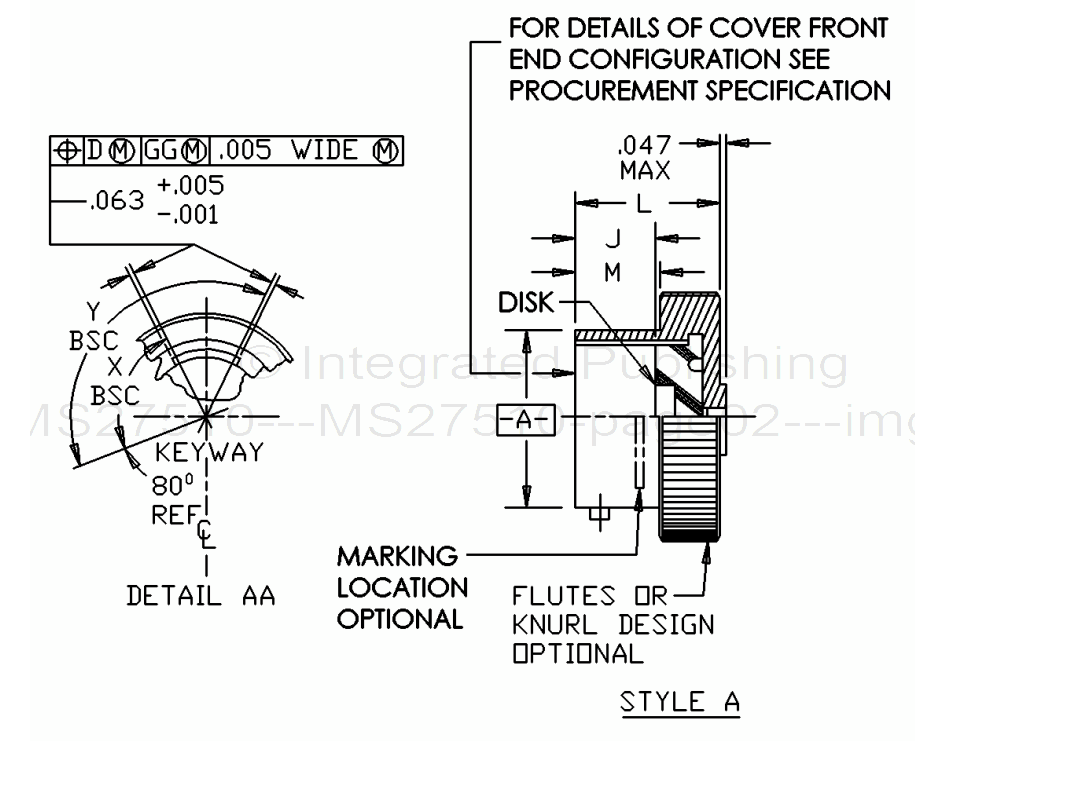

FIGURE 1. Cover - Continued.
