INCH-POUND
MS27615F
14 August 2009
SUPERSEDING MS27615E
6 February 2004
DETAIL SPECIFICATION SHEET
CONNECTORS, ELECTRICAL, PLUG, RATCHET LOCK COUPLING, FIREWALL SERIES
Inactive for new design after 14 November 1977. For new design, use MIL-DTL-83723, series III, class K, which is interchangeable.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26500.

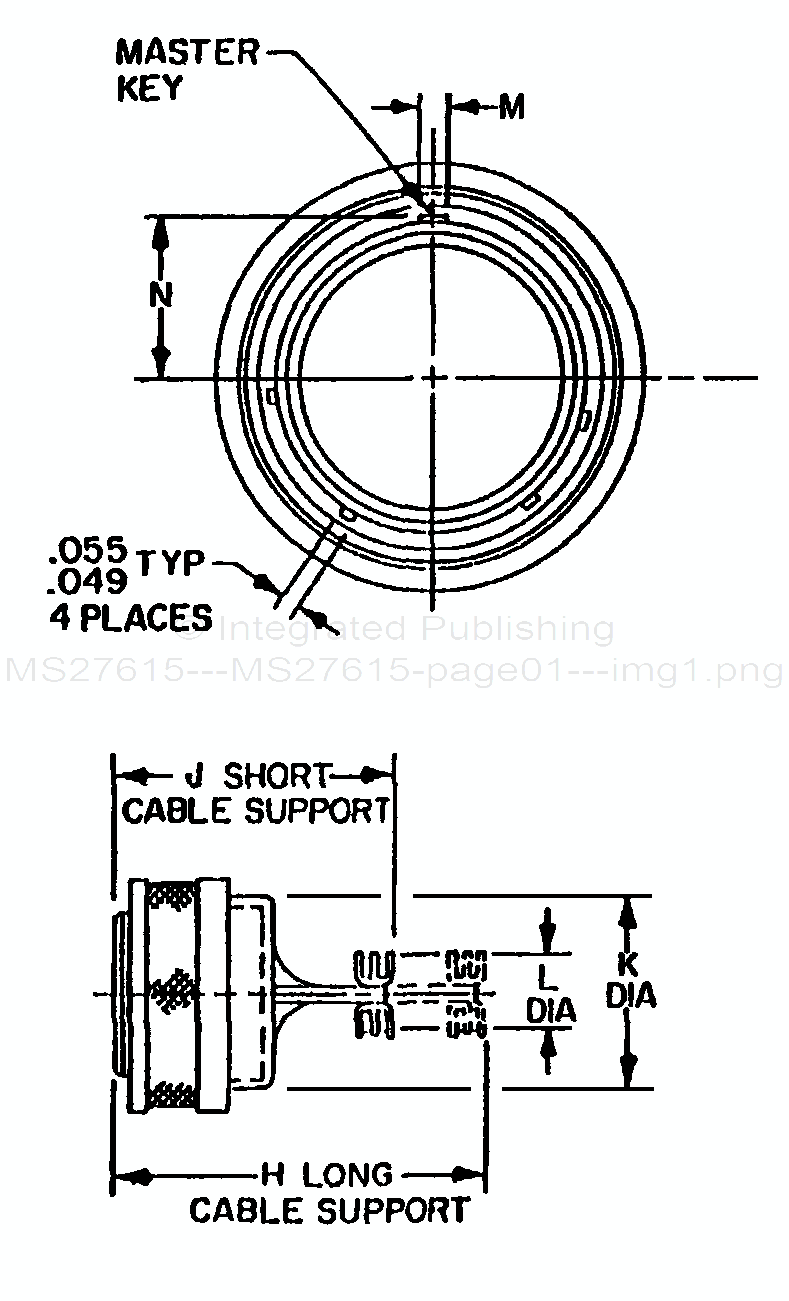

FIGURE 1. Plug dimensions.
AMSC N/A FSC 5935
