INCH-POUND
MS3116E
12 September 2013
SUPERSEDING MS3116D
19 August 1976
DETAIL SPECIFICATION SHEET
CONNECTORS, PLUG, ELECTRICAL, SOLDER TYPE, STRAIGHT, BAYONET COUPLING, SERIES 1, CLASSES E, F, J AND P
Inactive for new design after 15 December 1998,
and is no longer used, except for replacement purposes.
This specification is approved for use by all Departments and
Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.

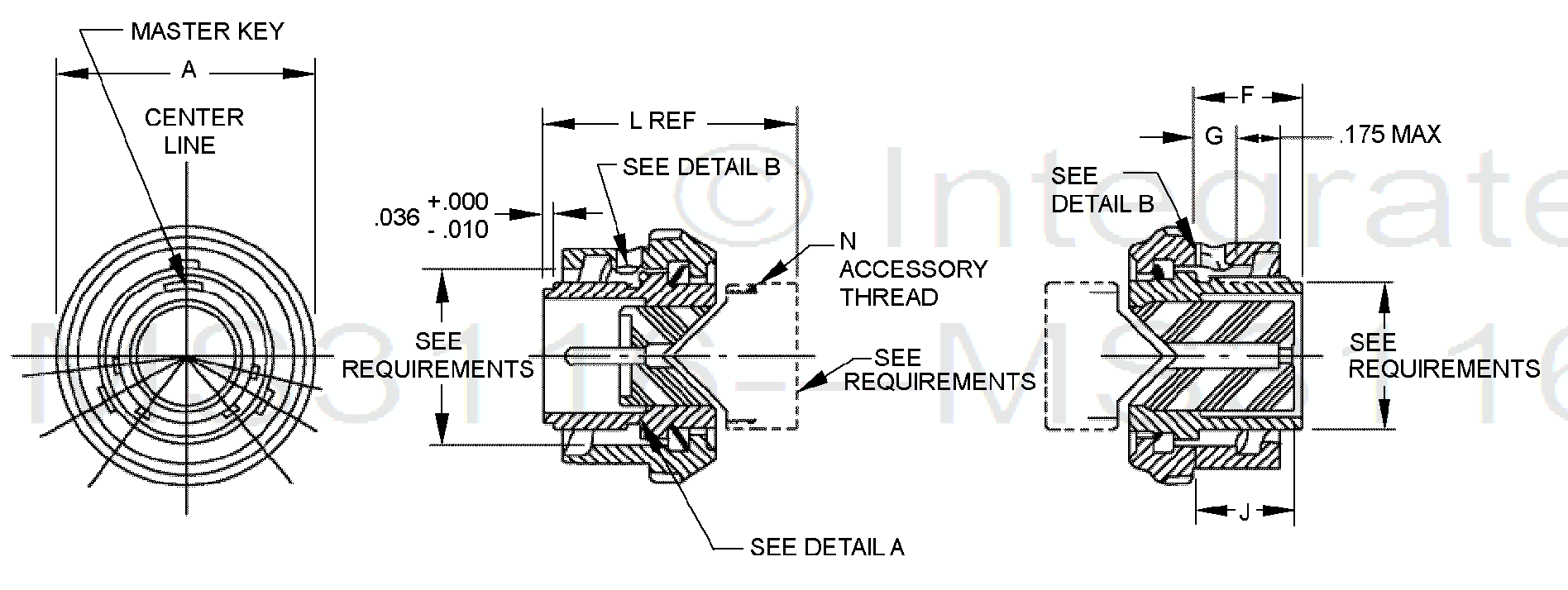

STYLE P STYLE S
PIN INSERT SOCKET INSERT
FIGURE 1. Plug, classes E, F, J, and P.
AMSC N/A FSC 5935
