INCH-POUND
MS3124G
31 October 2011
SUPERSEDING MS3124F
07 November 2007
DETAIL SPECIFICATION SHEET
CONNECTORS, RECEPTACLE, ELECTRIC, CRIMP TYPE,
REAR MOUNTING, JAM NUT, BAYONET COUPLING, SERIES 1, CLASSES E, F AND P
Inactive for new design after 5 September 1975.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
STYLE P (PIN INSERT)

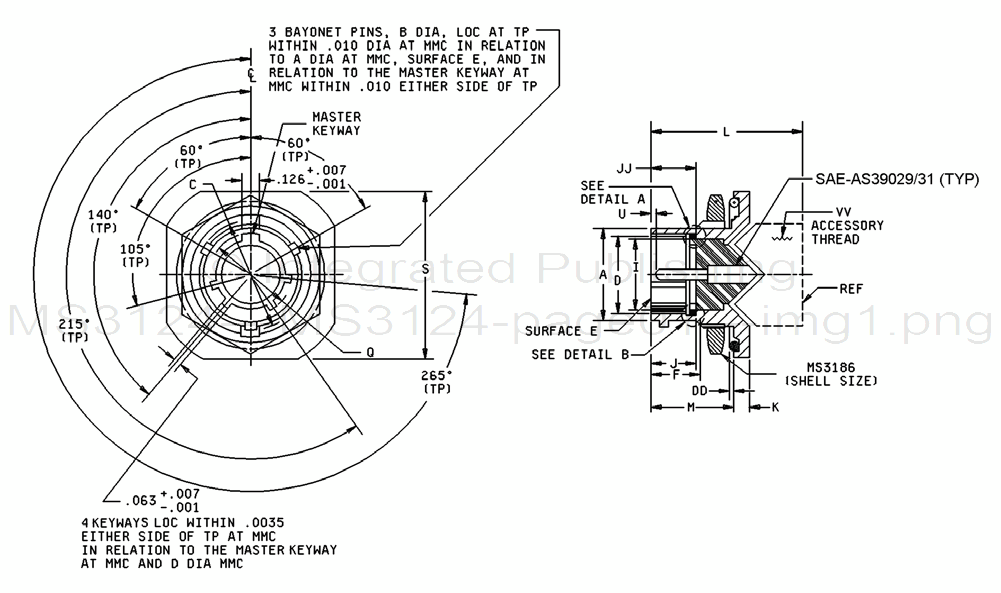

FIGURE 1. Receptacle, dimensions, classes E, F and P.
AMSC N/A FSC 5935
