MS3124G
Shell size |
DD +.011 0-ring protection |
HH max ID gasket |

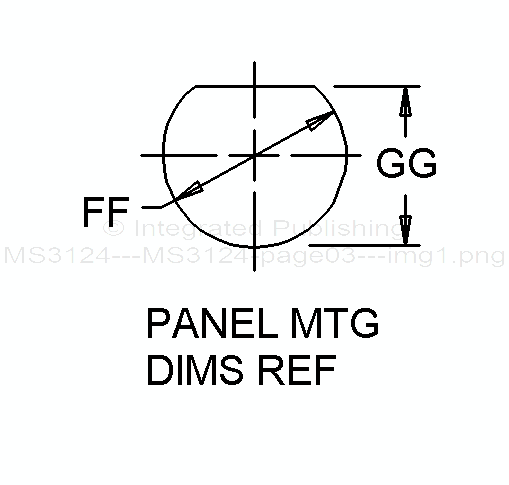

FF +.010 -.005 panel mounting hole |
GG +.010 -.005 panel flat location |
8 |
.023 (0.58) |
.329 (8.36) |
.572 (14.53) |
.540 (13.72) |
10 |
.457 (11.61) |
.697 (17.70) |
.665 (16.89) |
|
12 |
.564 (14.33) |
.885 (22.48) |
.828 (21.03) |
|
14 |
.689 (17.50) |
1.010 (25.65) |
.952 (24.18) |
|
16 |
.814 (20.68) |
1.135 (28.83) |
1.076 (27.33) |
|
18 |
.907 (23.04) |
1.260 (32.00) |
1.201 (30.51) |
|
20 |
.028 (0.71) |
1.032 (26.21) |
1.385 (35.18) |
1.326 (33.68) |
22 |
1.164 (29.57) |
1.510 (38.35) |
1.451 (36.86) |
|
24 |
1.259 (31.98) |
1.635 (41.53) |
1.576 (40.03) |
FIGURE 1. Receptacle, dimensions, classes E, F and P - Continued.
