INCH-POUND
MS3128K
29 April 2009 SUPERSEDING MS3128J
6 June 2003
DETAIL SPECIFICATION SHEET
CONNECTOR, RECEPTACLE, ELECTRICAL, CRIMP TYPE, WALL MOUNTING, NO. 4/6 HOLES, BAYONET COUPLING, SERIES 1, CLASSES E, F and P
Inactive for new design after 15 February 1965.
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-26482.
PIN INSERT

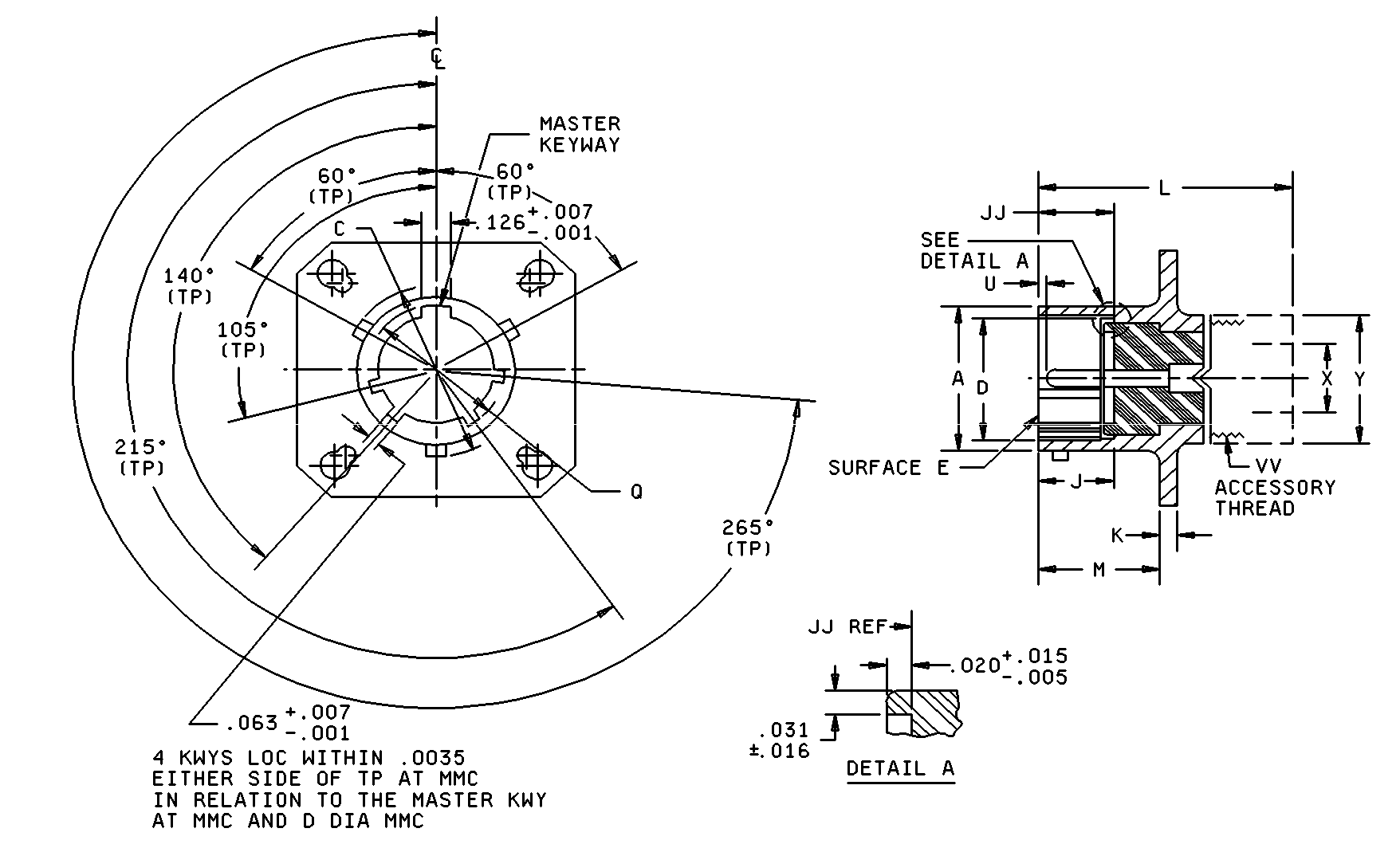

FIGURE 1. Receptacle, dimensions, classes E, F and P.
AMSC N/A FSC 5935
